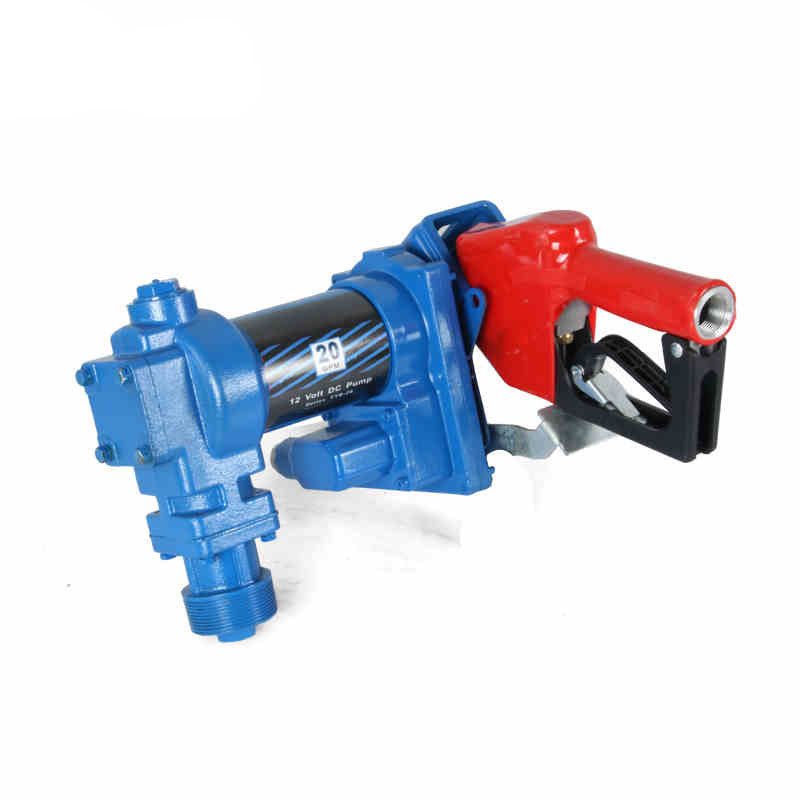

P-DYB-50 expump assy is compatible with petrol/gasoline, diesel, gasoline, stoddard solvent, mineral spirits. With explosion proof permanent magnet motor, as well as thermal overload protection, the single pump wins popularity in good material quality(brone rotor, carbon vane, check valve). What's more, 75 lpm big flow is also available if you like. The whold set include one manual nozzle(auto one for option), FM120 flowmeter, DYB50/75 DC pump, 4m delivery hose(2m suction hose for option), connecting adaptors.
a. Cast Iron body, with 100% bronze rotor and carbon vanes
b. Built-in striner, bypass valve prevent big massiveness
c. 2' threaded base for tank opening
e. Nozzle hanger available
| Model Number | CDI-P16 | |
| Model |
P-DYB50-DC12 |
P-DYB75-DC12 |
|
Inlet Size |
1' |
|
|
Outlet Size |
3/4' |
|
|
Thread Tank Adapter |
2' |
|
| Flowrate | 57 lpm |
76 lpm |
| Application Media |
gasoline, kerosene, diesel |
|
|
Voltage |
12V/24V |
|
| Power |
1/4 HP |
|
|
Working Pressure |
0.3 Mpa |
|
| Motor Speed |
2600 rpm |
|
| Package |
1 pc /carton |
|
