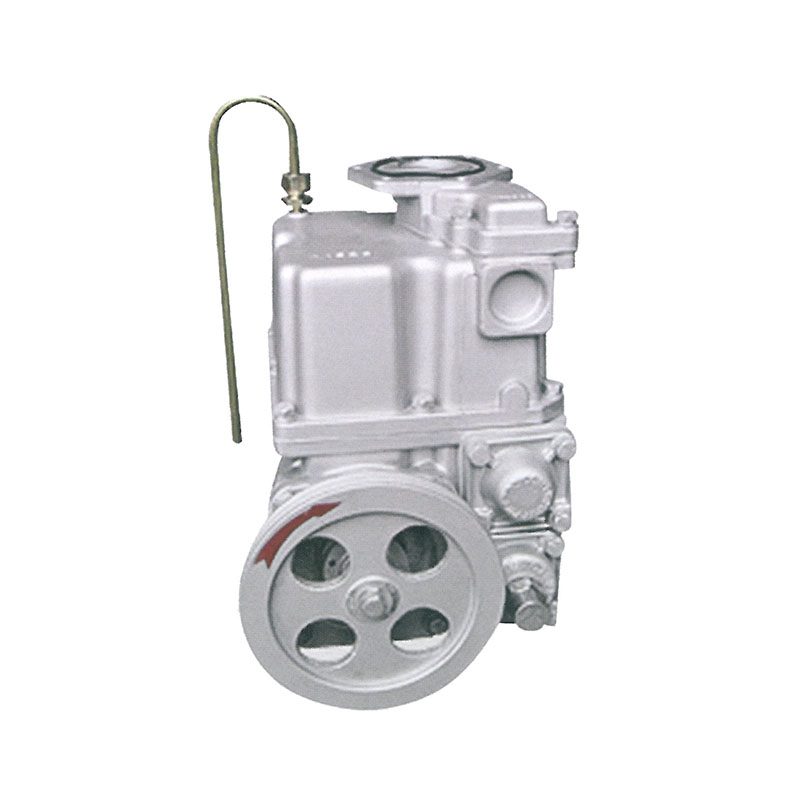

P-ZYB-50/80 Series pump is suitable for gasoline, diesel, kerosene fuel transfer, and offen connect with RSJ flowmeter as the part of fuel dispenser.
a. low noise, high flowrate(85lpm type for option), long life service.
b. two type for choice, can be connect with flowmeter as part of dispenser
c. aluminum body
| Model Number | CDI-P29 | |
| Model |
P-ZYB-50 |
P-ZYB80 |
| Flowrate |
10-65 lpm |
10-85 lpm |
| Application Media |
gasoline, kerosene, diesel |
|
|
Motor Speed |
630 rpm |
|
|
Vacuum |
≥0.054 Mpa | |
|
Noise |
≤72dB | |
|
Working Pressure |
0.16-0.2Mpa |
0.2-0.25Mpa |
| Package |
1 pc/carton |
|
| Carton Dimension |
34x26x37 cm |
|
| G.W/N.W | 17.5kgs/17kgs | |
