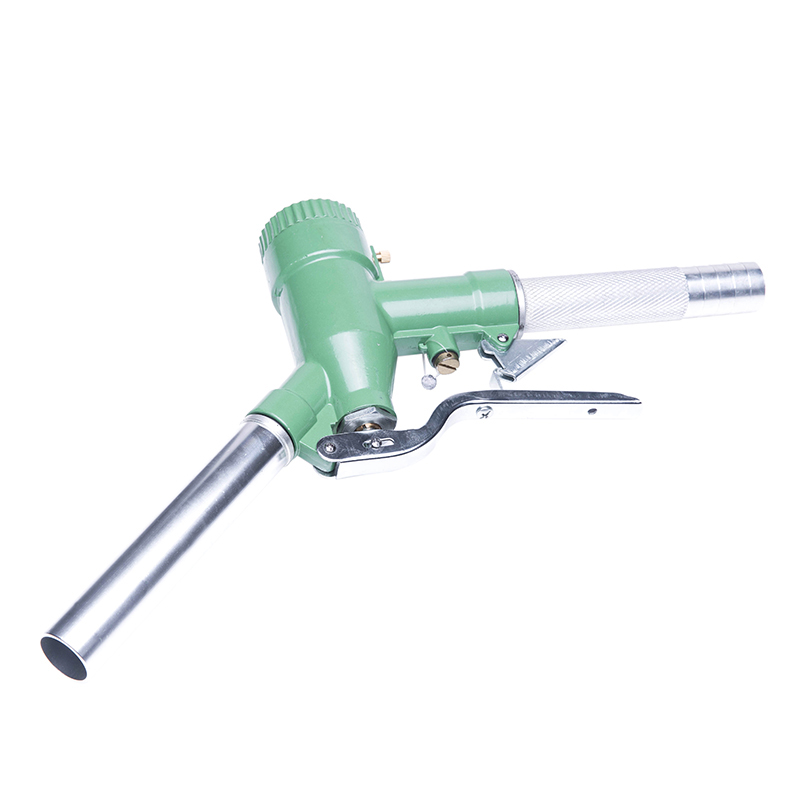

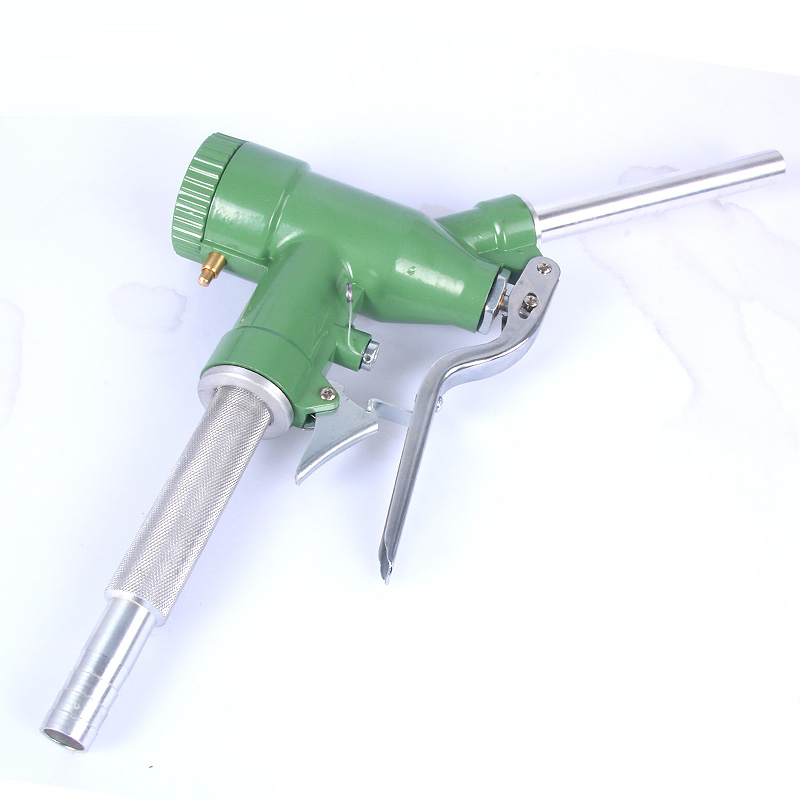

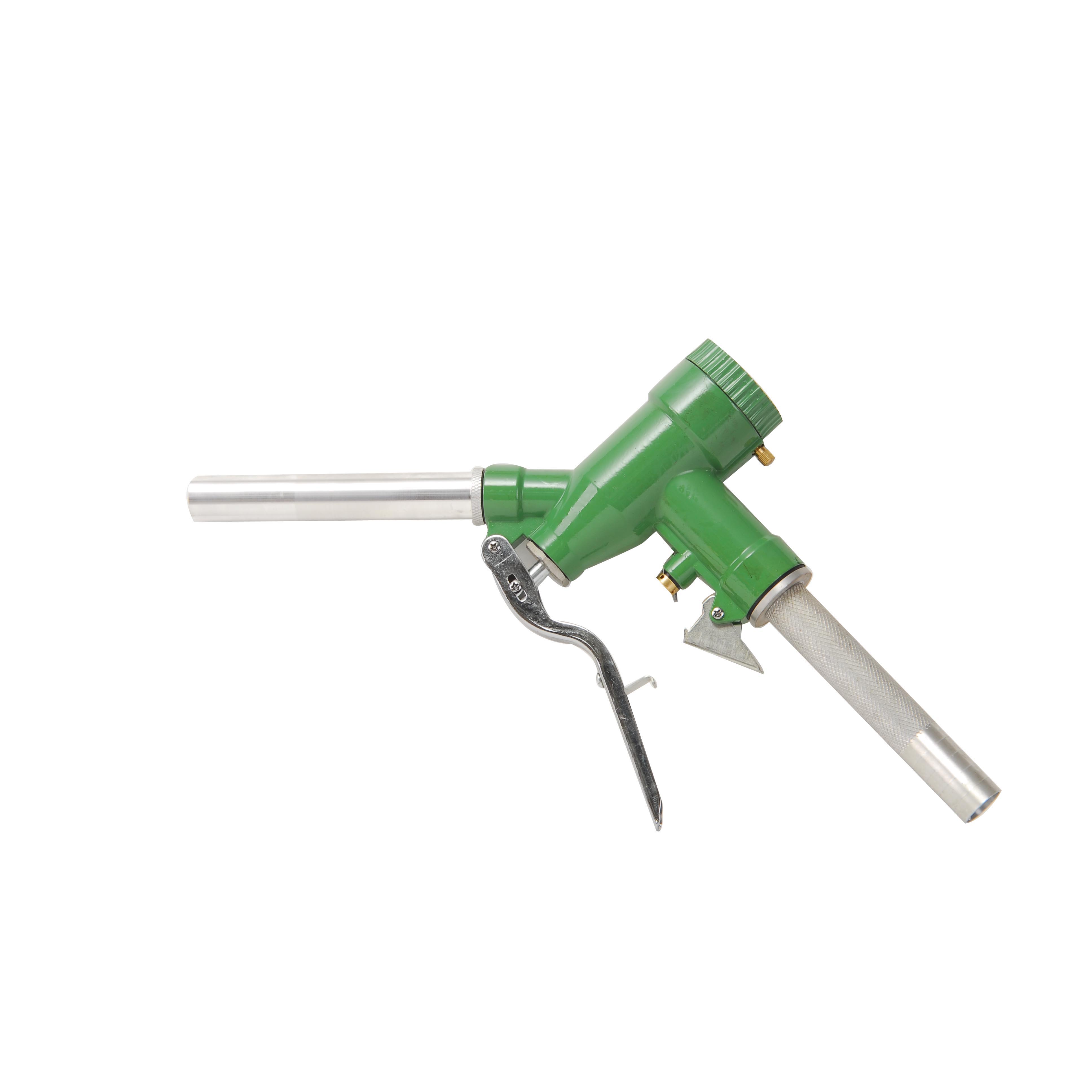

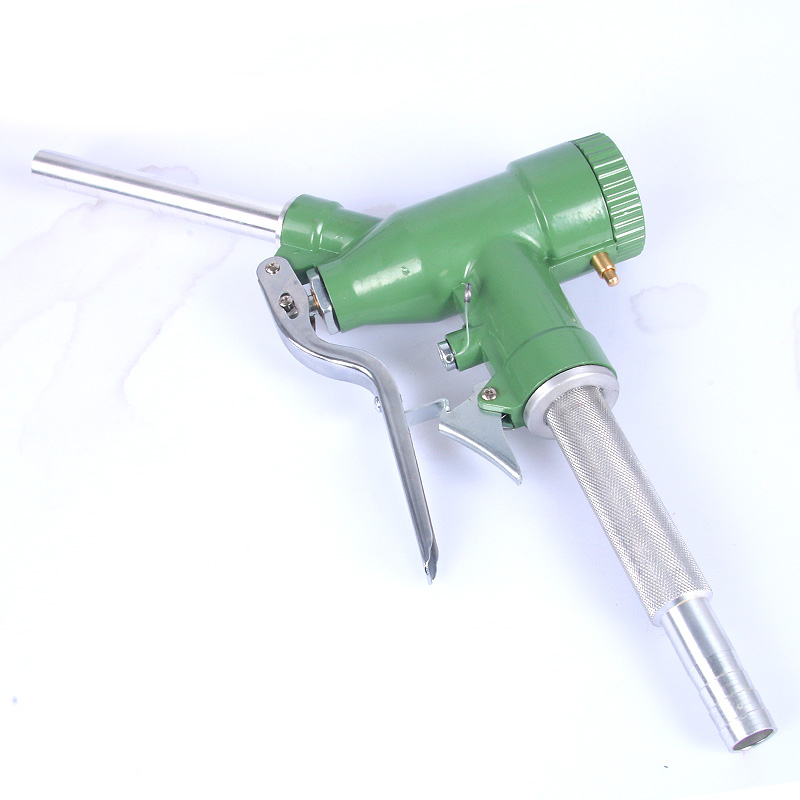

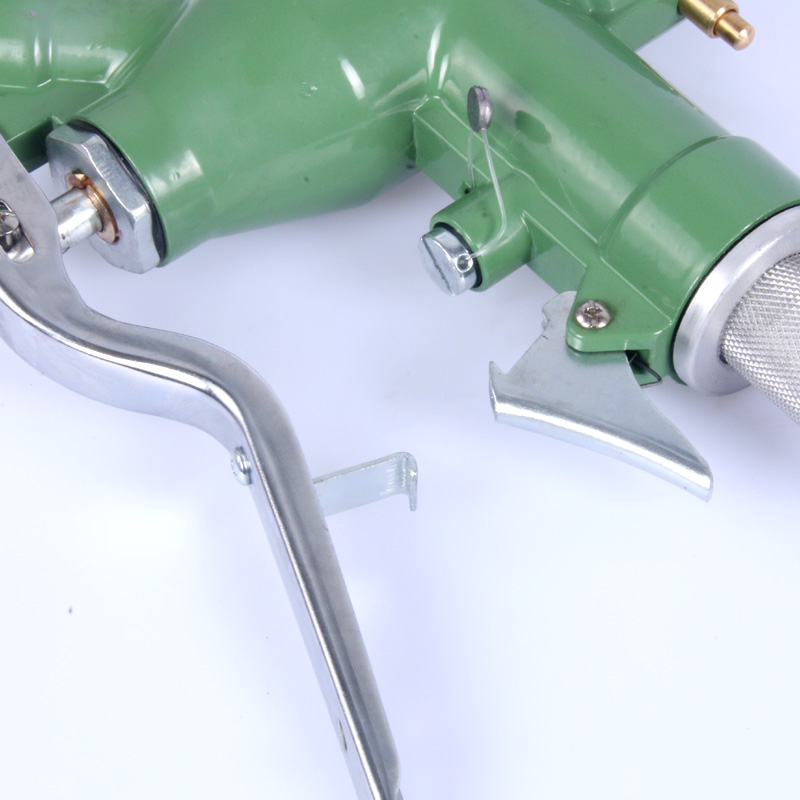

CDI-N15 LLY Spiral Metering Fuel Nozzle

Please call: +86 57721817288
  • CDI-N15 LLY Spiral Metering Fuel Nozzle
  • CDI-N15 LLY Spiral Metering Fuel Nozzle
  • CDI-N15 LLY Spiral Metering Fuel Nozzle
  • CDI-N15 LLY Spiral Metering Fuel Nozzle
  • CDI-N15 LLY Spiral Metering Fuel Nozzle
  • CDI-N15 LLY Spiral Metering Fuel Nozzle
  • CDI-N15 LLY Spiral Metering Fuel Nozzle
  • CDI-N15 LLY Spiral Metering Fuel Nozzle
Desription

LLY series is spiral wing type metering refuelng nozzle is used to measure the volume flow rate of liquid passing through the pipe and suitable for measuring gasoline and kerosend fuel, etc.  The meter has advantages as high accuracy and convenient carrying. As long as the measured with drop height of 2-10 meters between the surface and the instrument of medium, it can work normally without any additional power source.

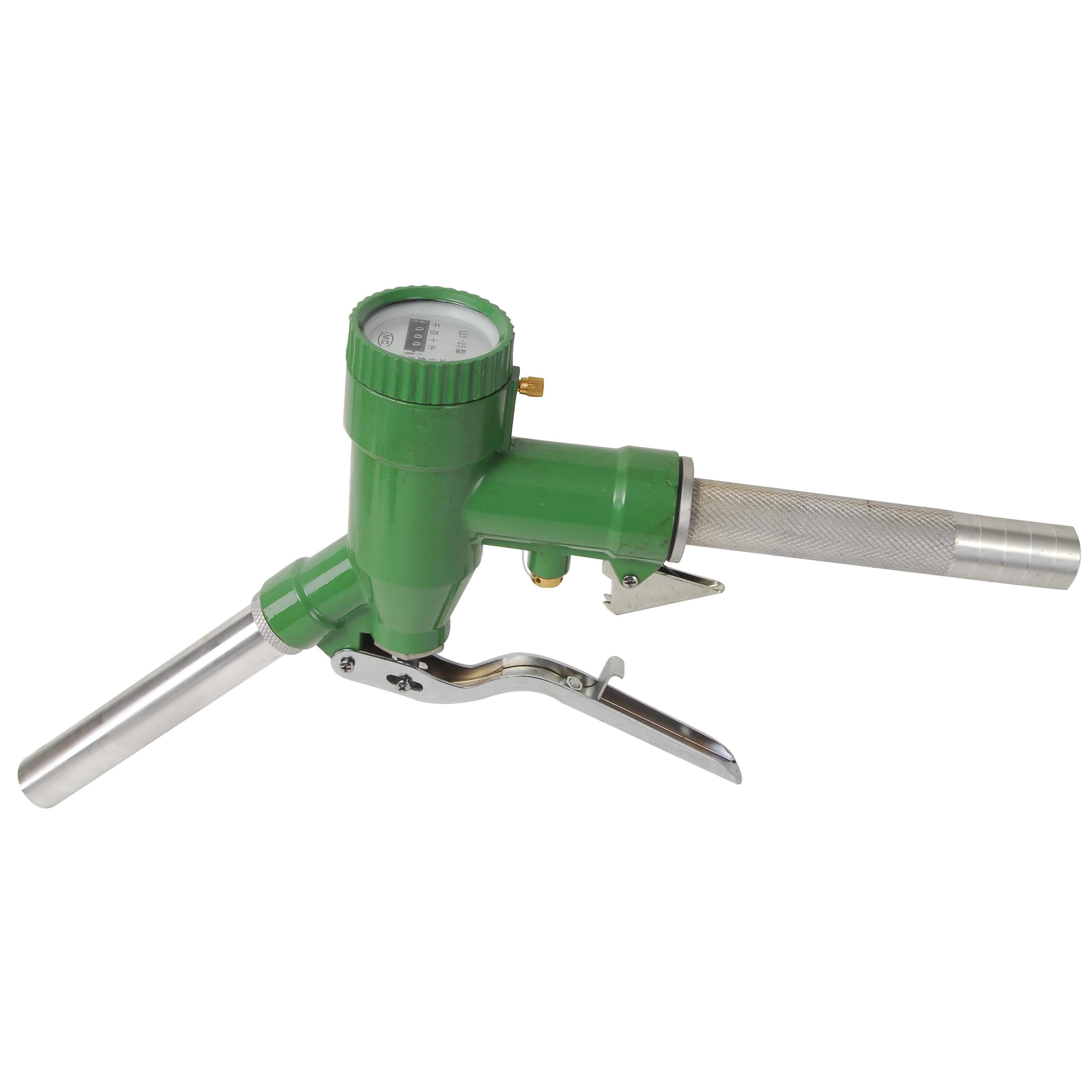

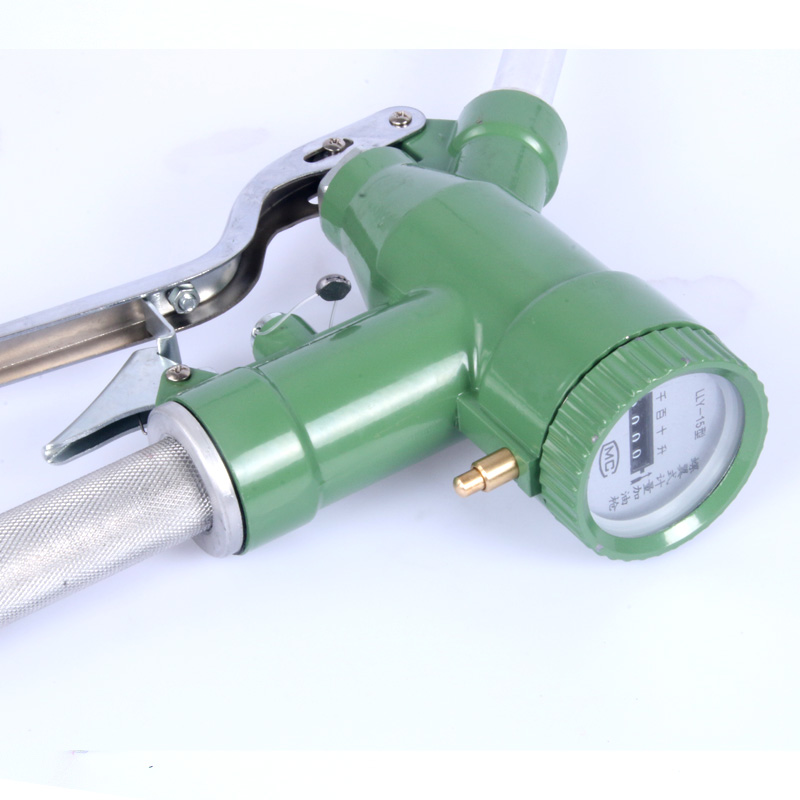

a. combine refueling with flowmeter

b. precise and stable walking, simple operation

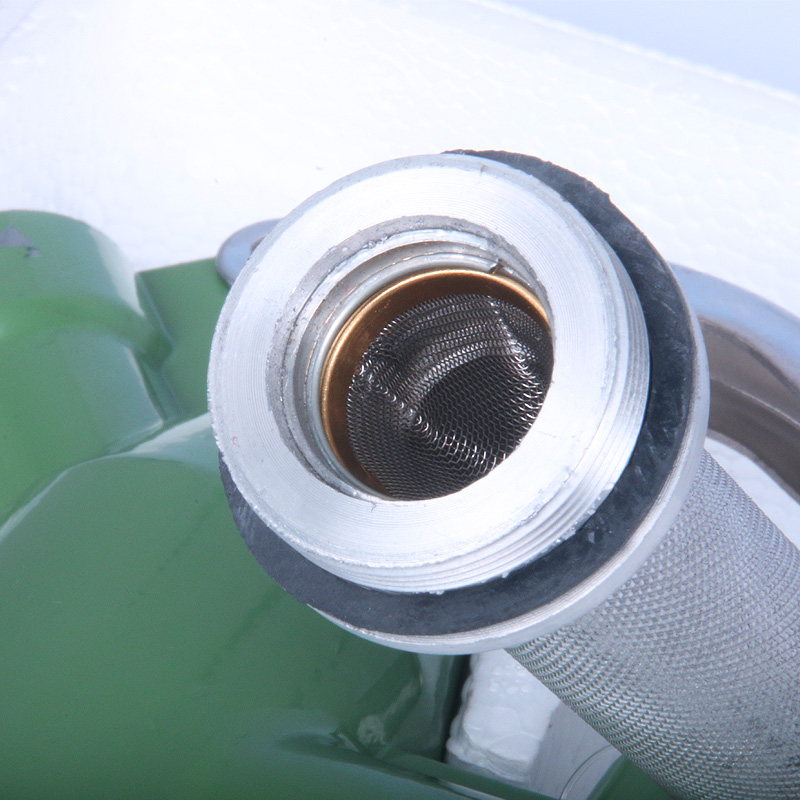

c. connecting swivel with filter inside


Model Number                                                        CDI-N11
  Inlet Size   DN15
  DN25   DN32   DN38
  Flowrate   0-60 lpm
  20-60 lpm   20-120 lpm   20-150 lpm
  Accuracy                                                           ±1%
  Application Media                                            gasoline, kerosene, diesel
  Material
                                                      aluminum
  Working Pressure                                                        0.3Mpa
  Package                                                   10 pcs/carton
  Dimension                                                                51x32x45 cm
  N.W./ G.W.   10.5kgs/12.5kgs
  12.5kg/14.5kg   14.5kg/16.5kg   16.5kg/18kg
