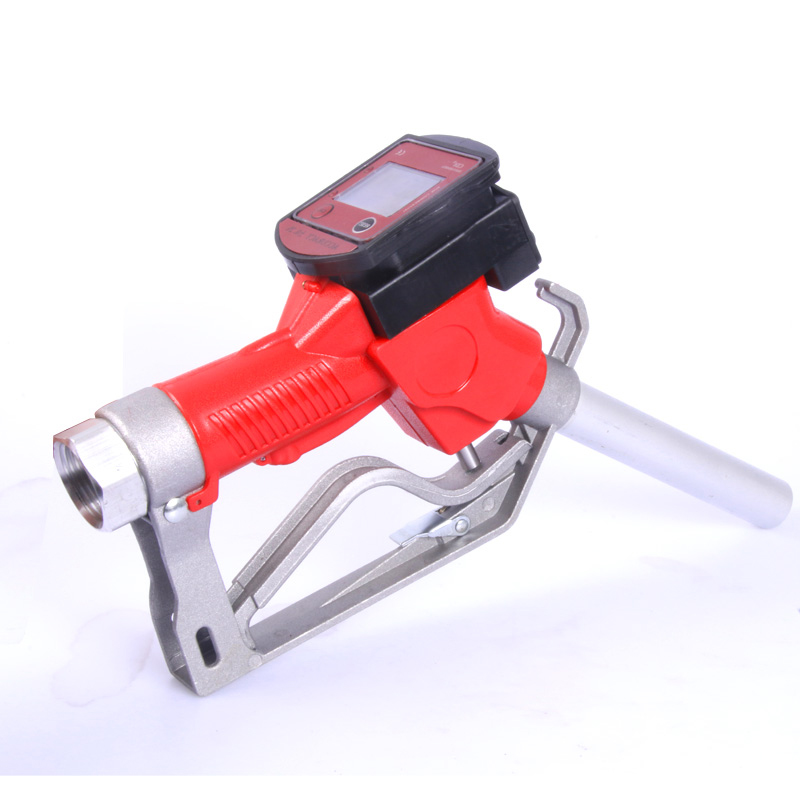

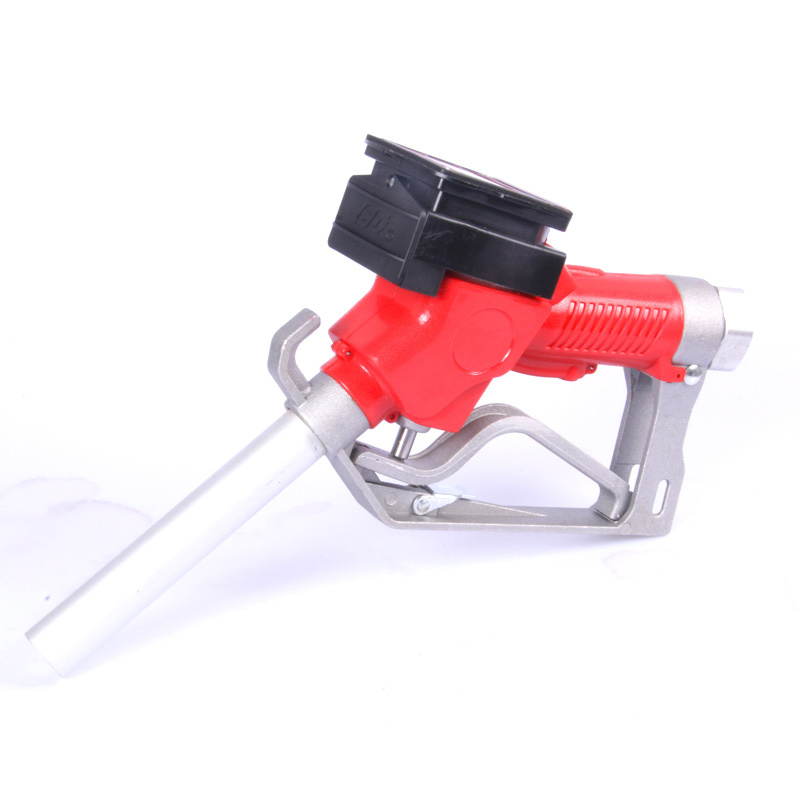

K26 turbine metering fuel nozzle is used to measure the volume flow rate of liquid passing through the pipe and suitable for measuring gasoline and kerosend fuel, etc. The meter has advantages as high accuracy and convenient carrying. As long as the measured with drop height of 2-10 meters between the surface and the instrument of medium, it can work normally without any additional power source.
a. can be used for different media like gasoline, diesel, kerosene and other oil
b. high accuracy, light weight, compact volume makes it convenient for carrying
c. precise and stable walking, simple operation
d. combine refueling with flowmeter
| Model Number |
CDI-N11 |
| Inlet&Outlet Size |
1' |
| Flowrate |
0-60 lpm |
| Accuracy | ±0.5% |
| Application Media |
gasoline, kerosene, diesel |
|
Material |
aluminum |
| Working Pressure |
0.18Mpa |
| Package |
10 pcs/carton |
| N.W./ G.W. | 16.5kg/17.5kg |
| Dimension | 51x32x45 cm |
