Metering Nozzle Series

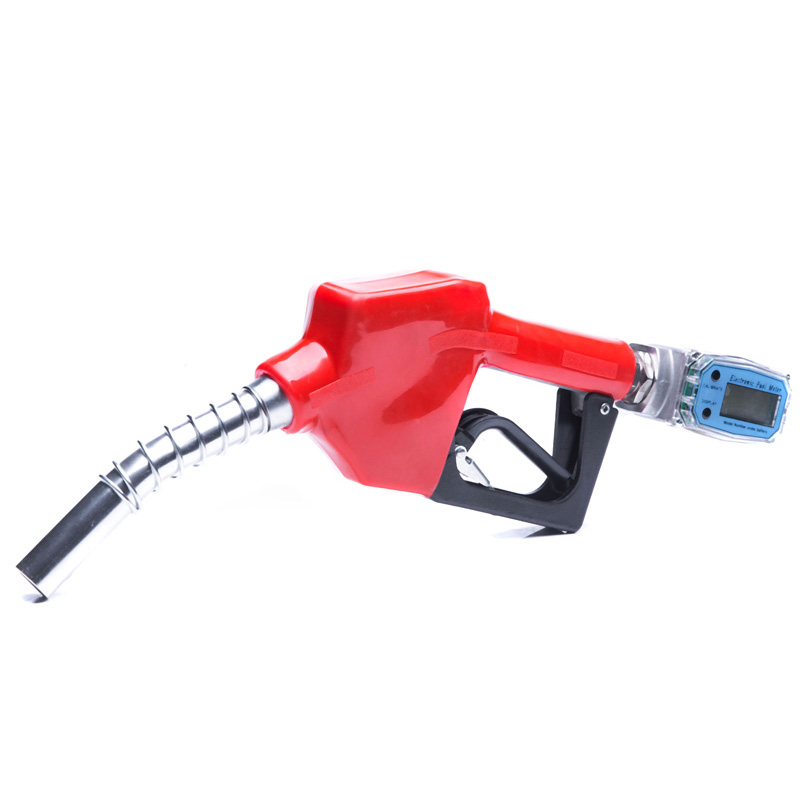

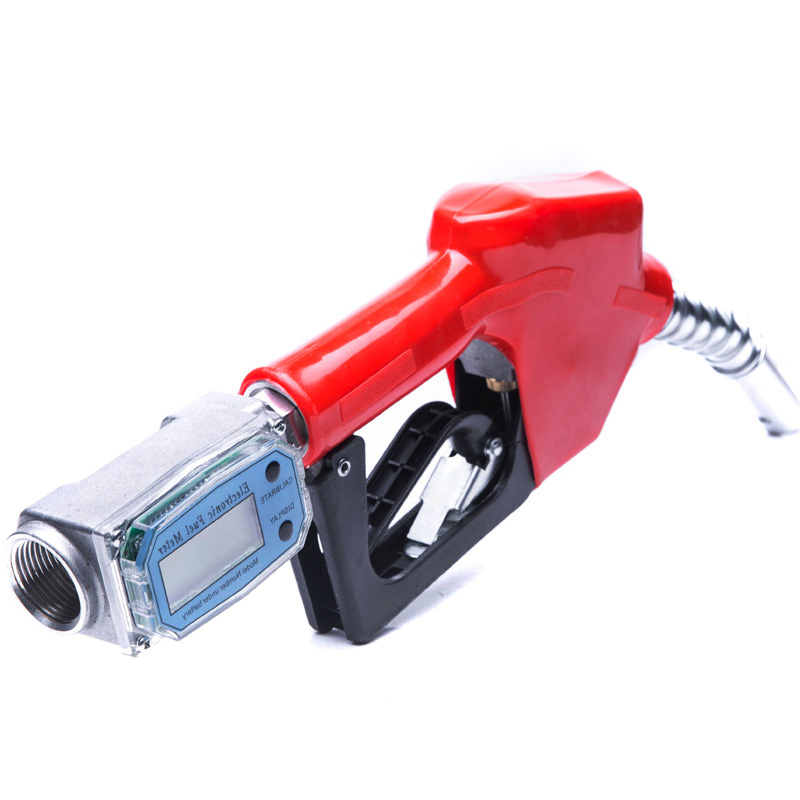

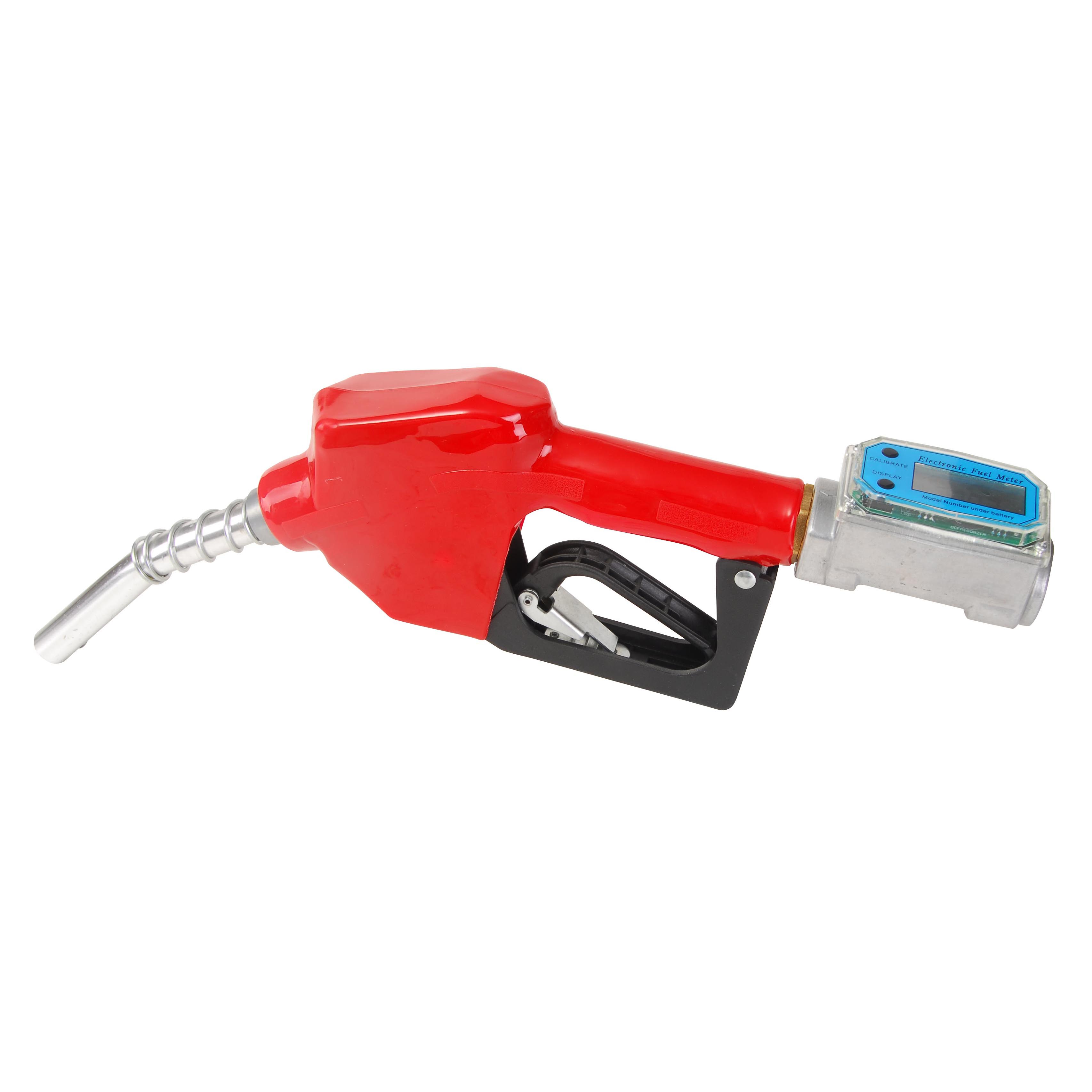

CDI-N14 Automatic Fuel Metering Gasoline Nozzle

Please call: +86 57721817288
  • CDI-N14 Automatic Fuel Metering Gasoline Nozzle
  • CDI-N14 Automatic Fuel Metering Gasoline Nozzle
  • CDI-N14 Automatic Fuel Metering Gasoline Nozzle
  • CDI-N14 Automatic Fuel Metering Gasoline Nozzle
  • CDI-N14 Automatic Fuel Metering Gasoline Nozzle
Desription

Automatic shutoff turbine metering fuel nozzle is used to measure the volume flow rate of liquid passing through the pipe and suitable for measuring gasoline and kerosend fuel, etc.  The meter has advantages as high accuracy and convenient carrying. As long as the measured with drop height of 2-10 meters between the surface and the instrument of medium, it can work normally without any additional power source.



a. can be used for different media like gasoline, diesel, kerosene and other oil

b. high accuracy, light weight, compact volume makes it convenient for carrying

c. automatic shutoff function when oil transfer finish(oil reaching the nozzle spout hole)

d. precise and stable walking, simple operation

e. combine refueling with flowmeter


Model Number   CDI-N14
  Inlet&Outlet Size   1'
  Flowrate   0-60 lpm
  Accuracy   ±0.5%
  Application Media   gasoline, kerosene, diesel
  Material
  aluminum
  Working Pressure   0.18Mpa
