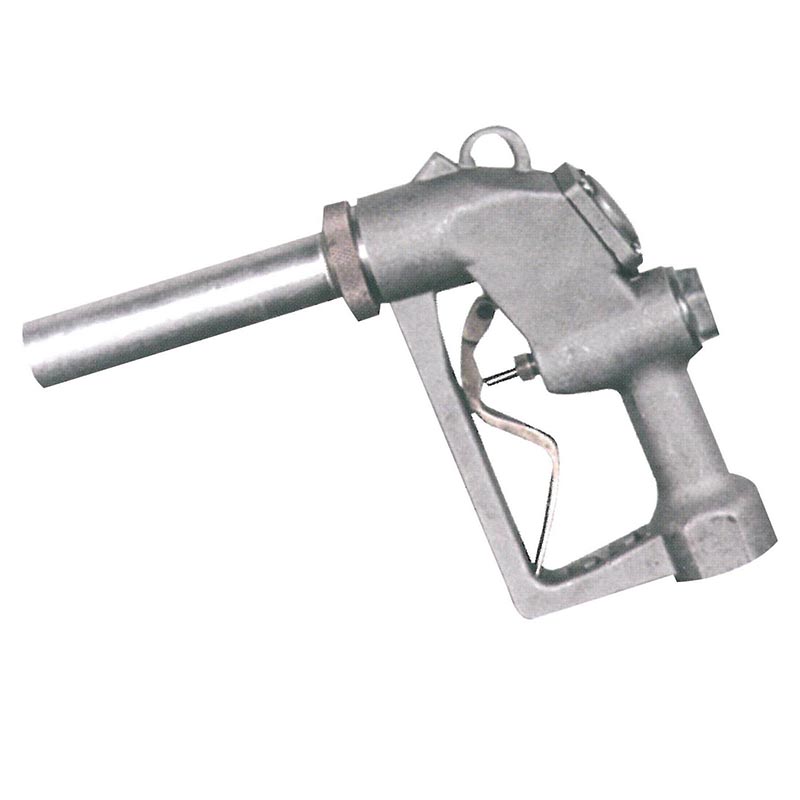

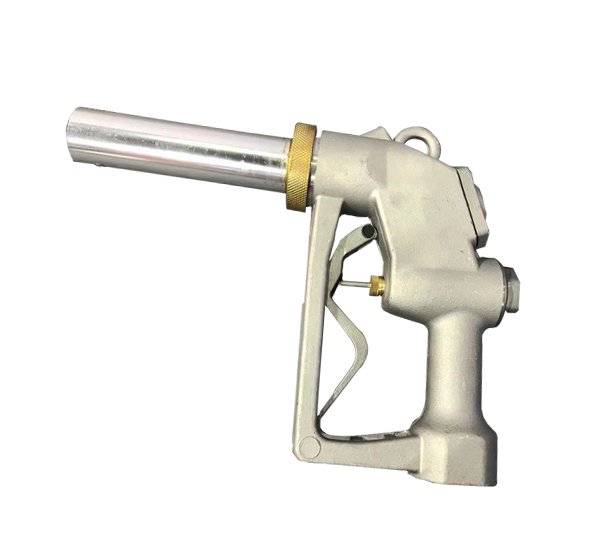

1290 series auto nozzle is for heavy-duty, high-flow truck, bus and home fuel oil delivery service.This nozzle can be assembled with different pumps and flowmeters, and is widely applied for refueling of engines, cars, motorbikes, tractors, etc..
a. can be used for different media like gasoline, diesel, kerosene and other oil
b. with high flowrate up to 300 lpm
c. light weight, right angle design, dual poppets and 2-position hold-open device
d. Built-in outlet check valve
| Model Number |
CDI-N08 |
| Inlet Size |
BSP/NPT 1.5' |
| Flowrate |
0-200 lpm |
| Application Media |
gasoline, kerosene, diesel |
|
Shutoff Sensitivity |
0.3 second |
| Working Pressure |
0.2Mpa |
| Material |
Aluminum |
| Package |
10 pcs/carton |
| N.W./G.W. | 25kgs/24kgs |
| Dimension | 35x35x52 cm |
