Automatic Nozzle Series

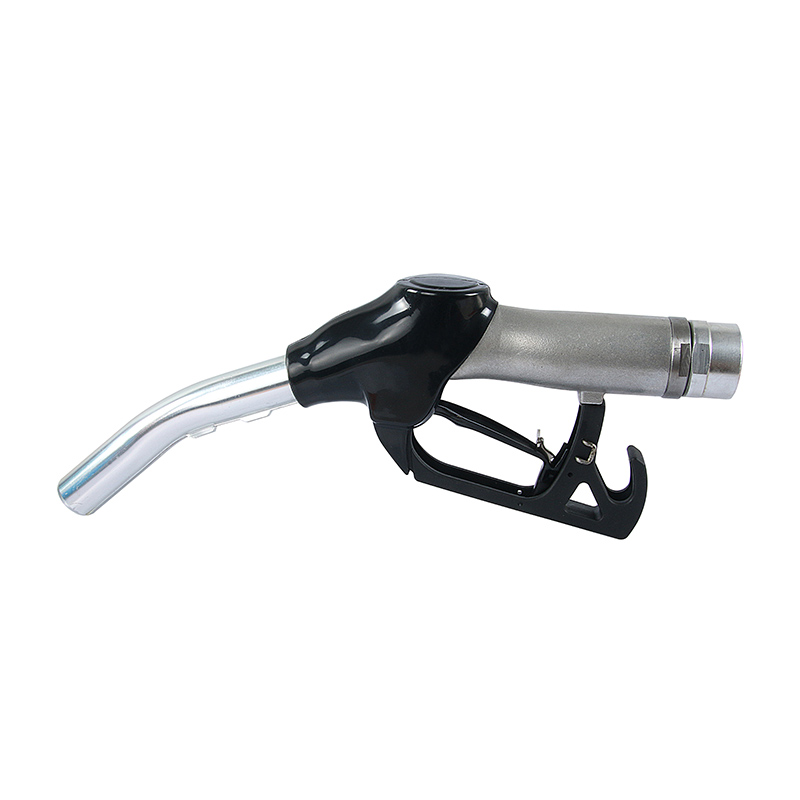

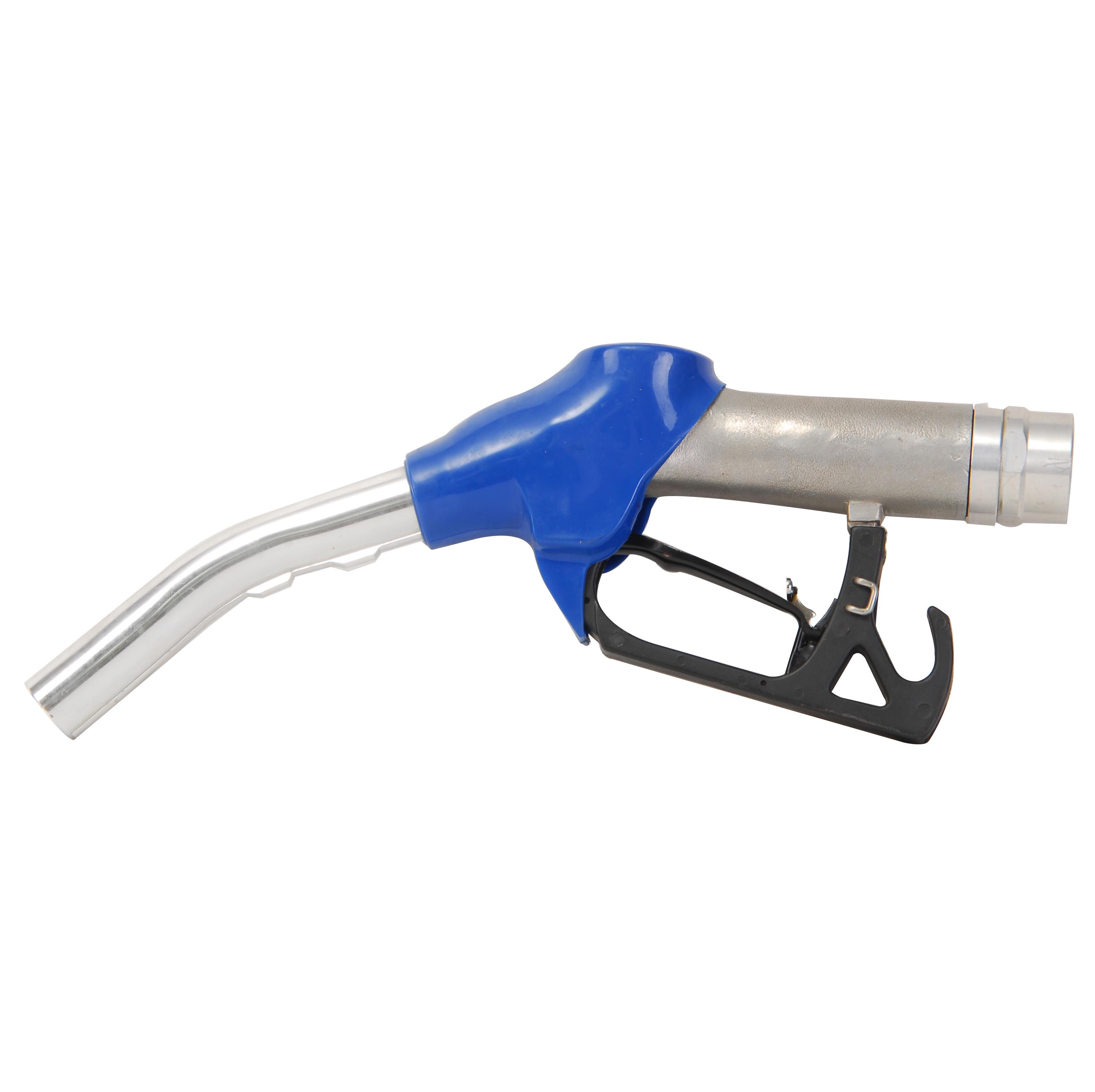

CDI-N07 Big Flowrate Automatic Diesel Fuel Nozzle

Please call: +86 57721817288
  • CDI-N07 Big Flowrate Automatic Diesel Fuel Nozzle
  • CDI-N07 Big Flowrate Automatic Diesel Fuel Nozzle
Desription

Xide Germany type nozzle is used to measure the volume flowrate of liquid passing through the pipe. It can only be used on pumped dispensing systems, they will not work on gravity-fed dispensing systems.This nozzle can be assembled with different pumps and flowmeters, and is widely applied for refueling of engines, cars, motorbikes, tractors, etc.



a. can be used for different media like gasoline, diesel, kerosene and other oil

b. high accuracy, light weight, compact volume makes it convenient for carrying

c. automatic shutoff function when oil transfer finish(oil reaching the nozzle spout hole)

d. 3 level of flowrate control for oil transfer

e. filter on the inlet part prevents impurites when oil transfer


Model Number   CDI-N07
  Inlet Size   BSP/NPT 1'
  Outlet Size   19/16'
  Flowrate   0-120 lpm
  Application Media   gasoline, kerosene, diesel
  Shutoff Sensitivity
  0.3 second
  Working Pressure   0.18Mpa
  Material   Aluminum
  Package   10 pcs/carton
  N.W./G.W.   17.5kg/18.5kg
  Dimension   42x36x33 cm
