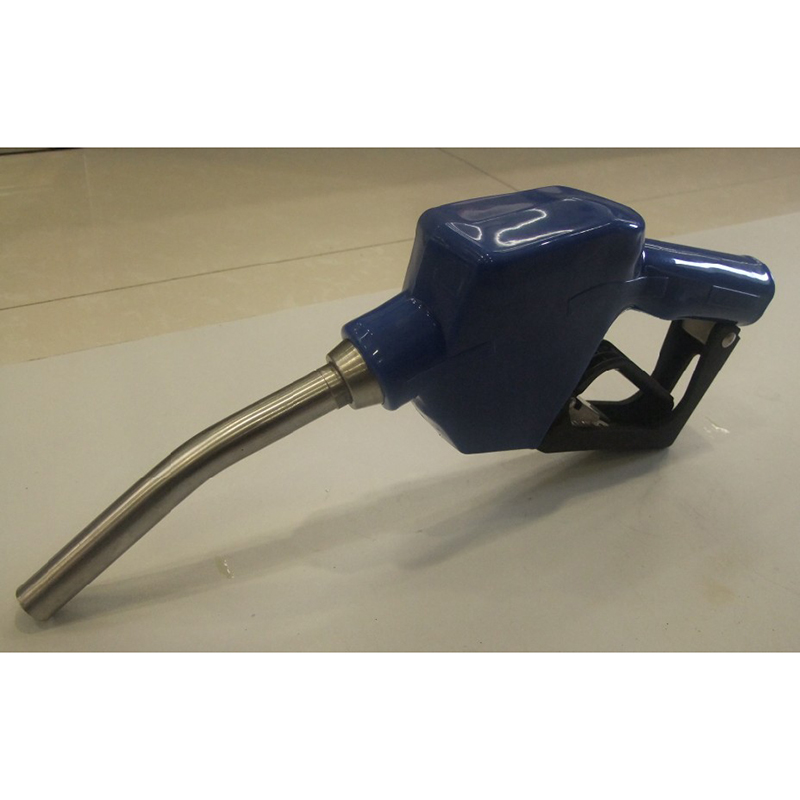

11A Stainless steel fuel nozzle . It is used to measure the volume flowrate of liquid passing through the pipe. This nozzle can be assembled with different pumps and flowmeters, and is widely applied for refueling of engines, cars, motorbikes, tractors, etc.
a. can be used for different media like gasoline, diesel, kerosene and chemicals, adblue
b. high accuracy, light weight, compact volume makes it convenient for carrying
c. automatic shutoff function when oil transfer finish(oil reaching the nozzle spout hole)
d. 3 level of flowrate control for oil transfe, stainless steel body anti corrosion
e. filter on the inlet part prevents impurites when oil transfer
| Model Number |
CDI-N03 |
| Inlet Size |
BSP/NPT 3/4' |
| Outlet Size | 1/2' |
| Flowrate |
0-60 lpm |
| Application Media |
gasoline, kerosene, diesel, adblue, chemicals |
|
Shutoff Sensitivity |
0.3 second |
| Working Pressure |
0.18Mpa |
| Material |
Stainless Steel |
| Package |
10 pcs/carton |
