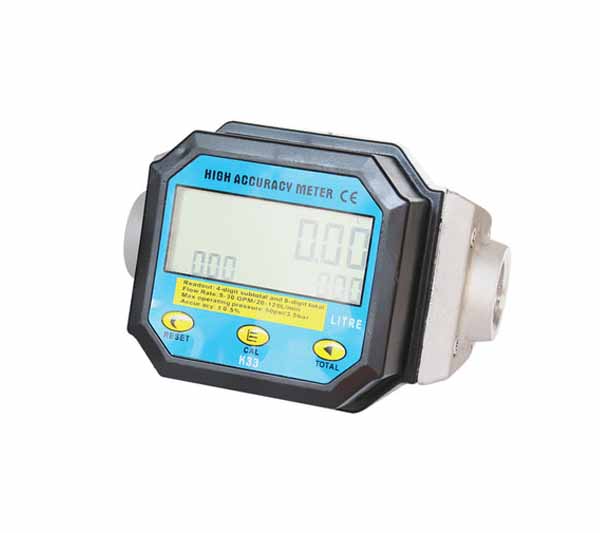

The electronic oval gear flowmeter, which featured in high accuracy, low pressure loss, small volume, and easy installation, is for different viscosity liquid, such as fuel oil, lubricating oil. It can installed with nozzle for fuel transfer measurement as well as with pulse output to other equipments.
a. Small size, durable, compact
b. Could be applied for heavy oil
c. Oval gears makes accuracy ≤0.5%
d. Lithium battery can supply 9000 hours power
| Model Number |
CDI-M27 |
| Inlet Size |
BSP/NPT 1' |
| Flowrate |
20-120 lpm |
| Application Media |
Diesel, Gasoline, Kerosene,Engine oil |
| Material |
Aluminum |
| Accuracy | ±0.8% |
| Max. Working Pressure |
1.8 Mpa |
| Power | 1 pc 3.6V Lithium Battery |
| Unit Count | 4 digits |
| Total Count | 6 digits Accumulationx100 9,999,990 |
