Oval Gear Type Flow Meter

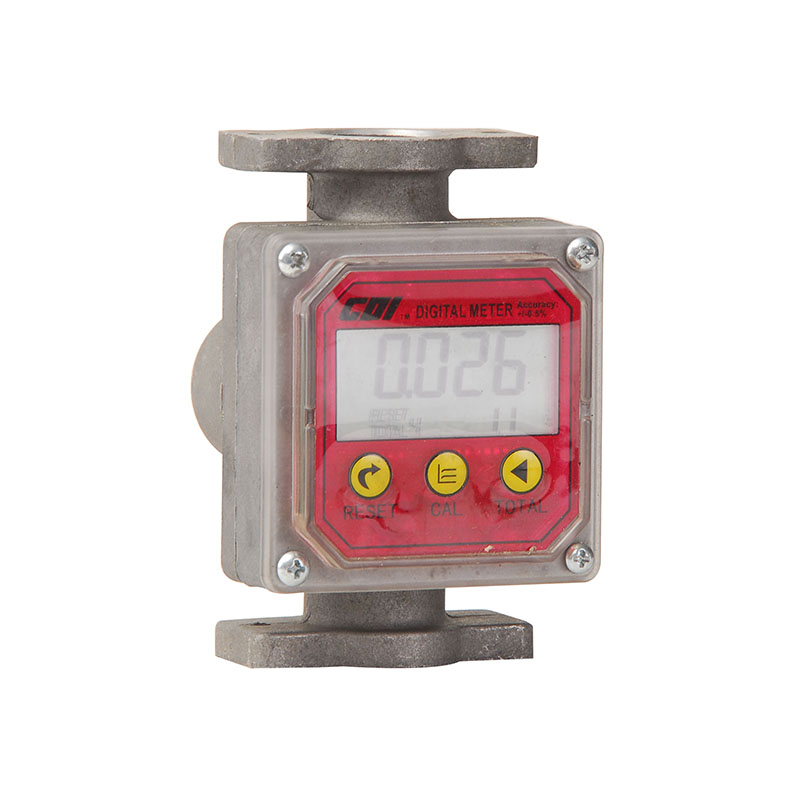

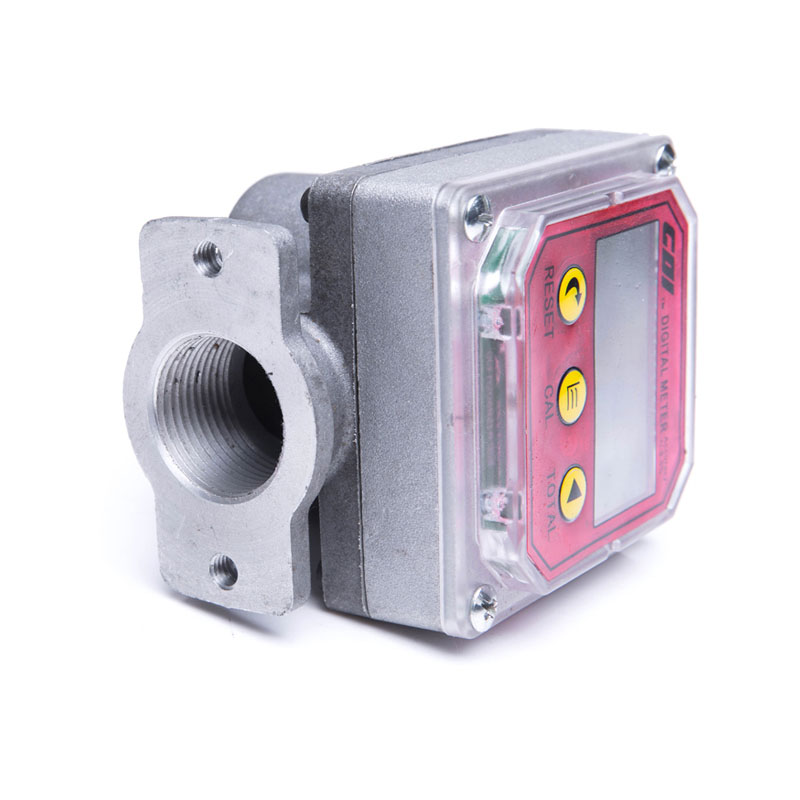

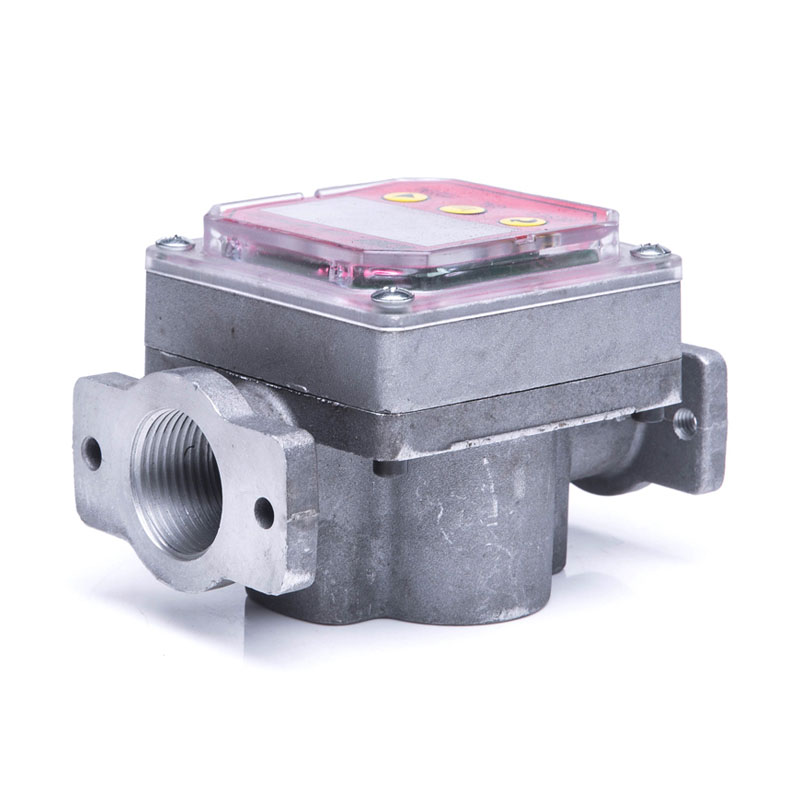

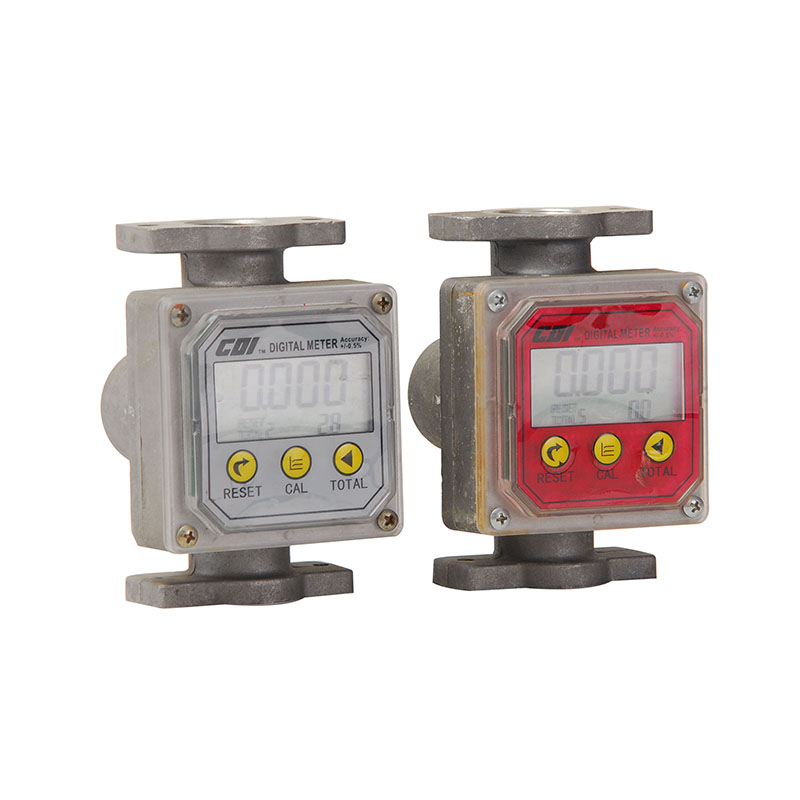

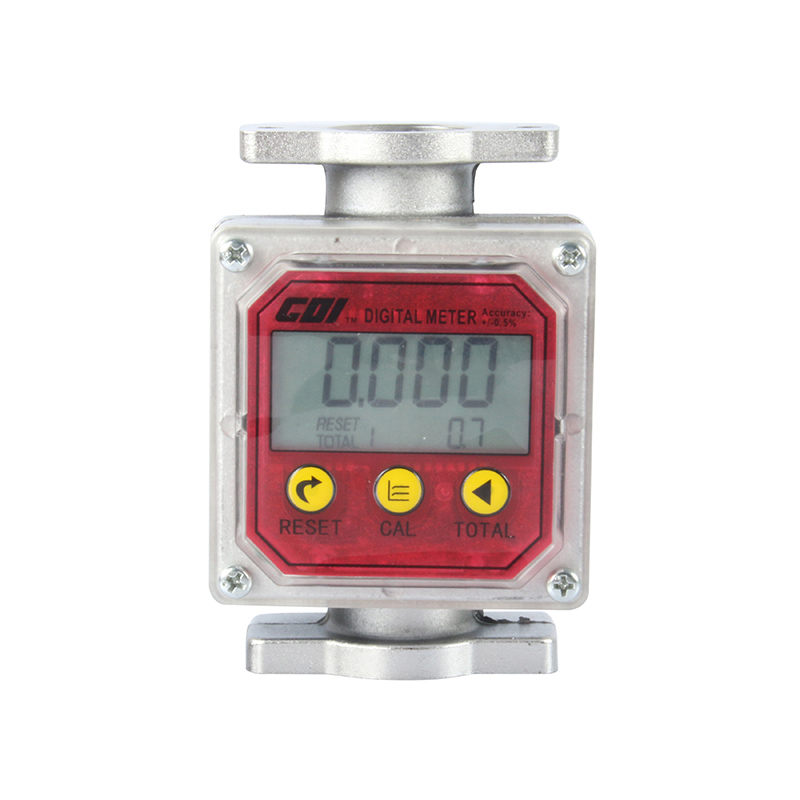

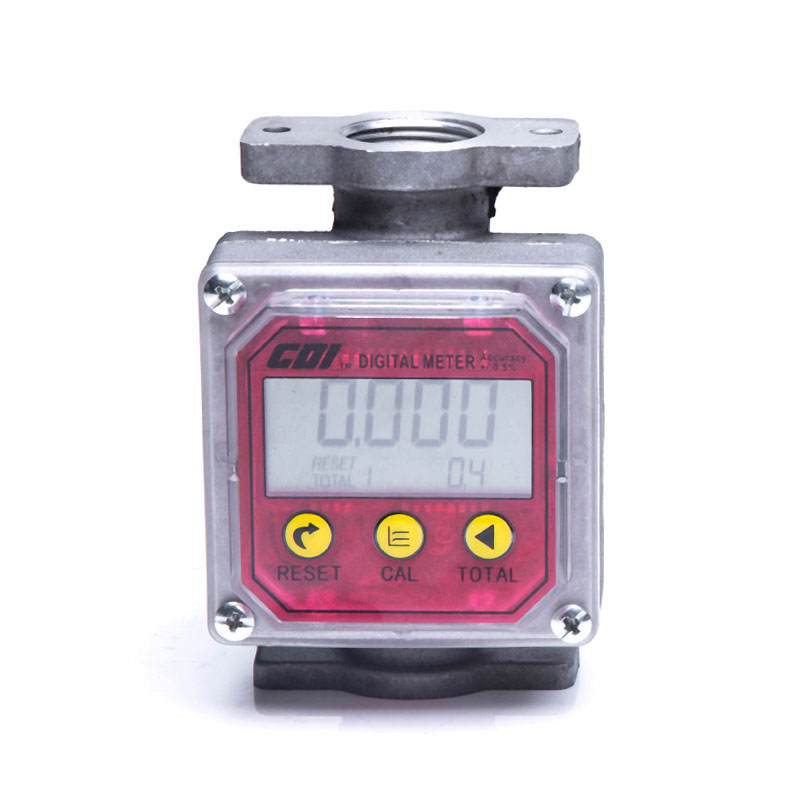

CDI-M12 Electronic Big Flowrate Oval Gear Meter

Please call: +86 57721817288
  • CDI-M12 Electronic Big Flowrate Oval Gear Meter
  • CDI-M12 Electronic Big Flowrate Oval Gear Meter
  • CDI-M12 Electronic Big Flowrate Oval Gear Meter
  • CDI-M12 Electronic Big Flowrate Oval Gear Meter
  • CDI-M12 Electronic Big Flowrate Oval Gear Meter
  • CDI-M12 Electronic Big Flowrate Oval Gear Meter
  • CDI-M12 Electronic Big Flowrate Oval Gear Meter
  • CDI-M12 Electronic Big Flowrate Oval Gear Meter
Desription

The electronic oval gear flowmeter, which featured in high accuracy, low pressure loss, small volume, and easy installation, is for different viscosity liquid, such as fuel oil, lubricating oil. It can installed with nozzle for fuel transfer measurement as well as with pulse output to other equipments.



a. Small size, durable, compact

b. Could be applied for heavy oil

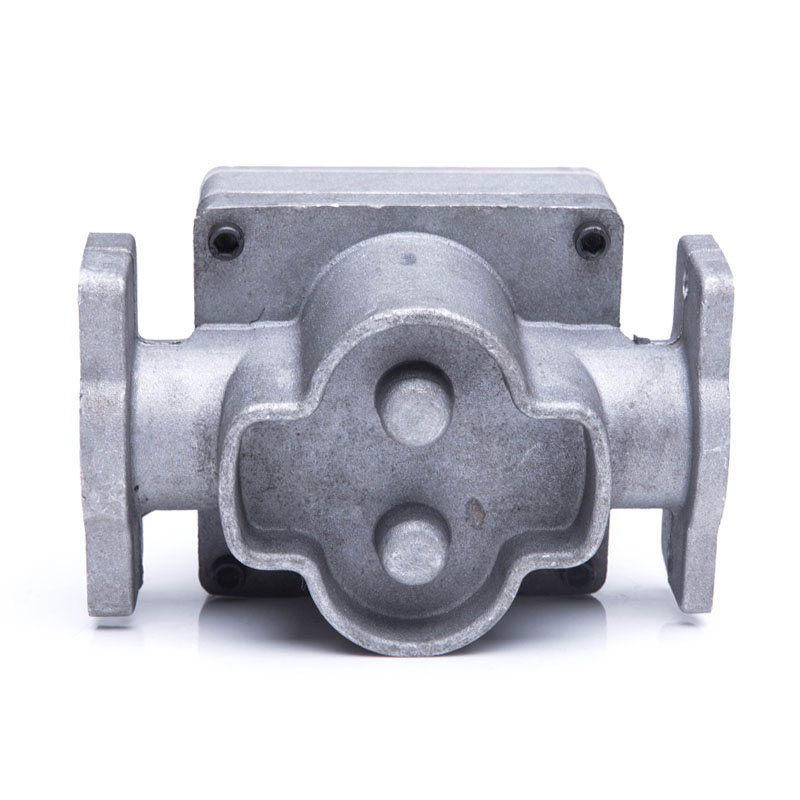

c. Oval gears makes accuracy ≤0.5%

d. Lithium battery can supply 9000 hours power


Model Number   CDI-M12
  Inlet Size   BSP/NPT 1'
  Flowrate   0-120 lpm
  Application Media    Diesel, Gasoline, Kerosene
  Material   Aluminum
  Accuracy   ±1%
  Max. Working Pressure   1.8 Mpa
  Power   1 pc 3.6V Lithium Battery

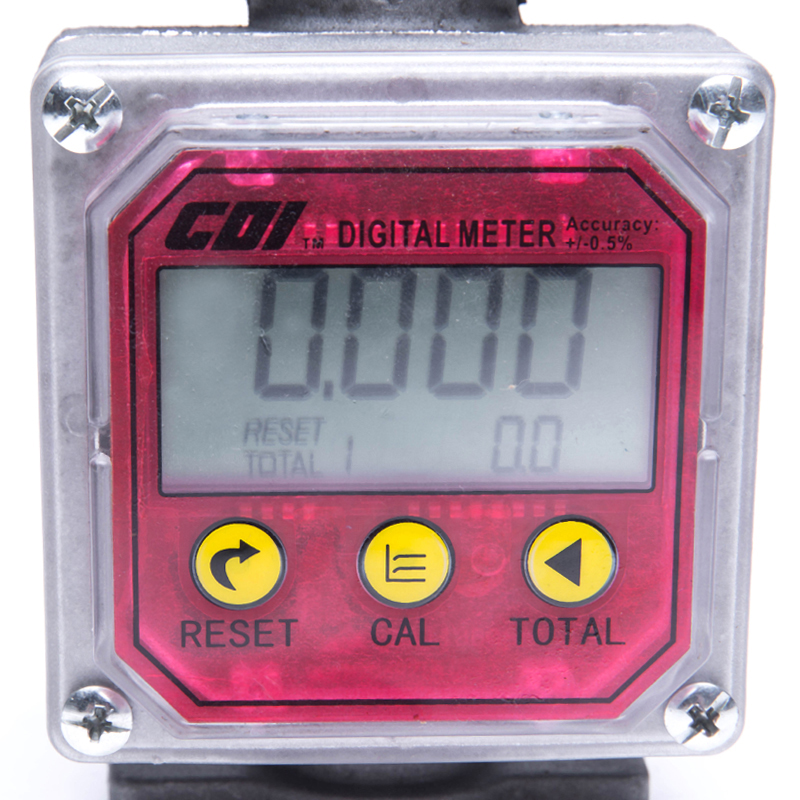

  Unit Count   4 digits
  Total Count   6 digits  Accumulationx100 9,999,990
