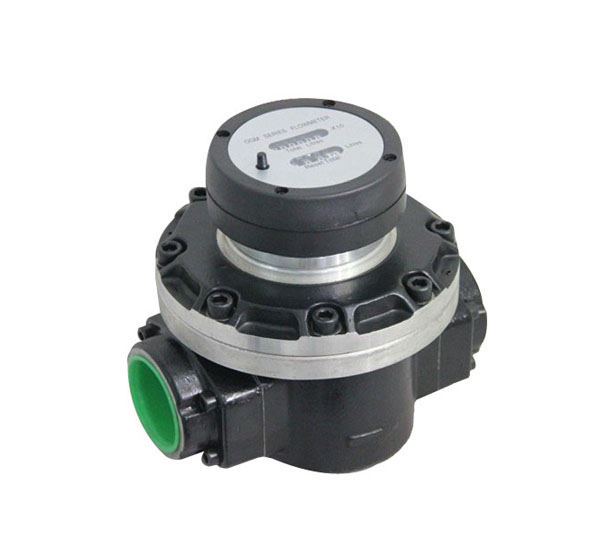

OGM-25/40/50 Aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, applying in petroleum, chemical, food industry, etc.
a. can be used for different media like gasoline, diesel, kerosene, as well as heavy oil with viscocity
b. working pressure of refueling under 3.4Mpa(1.8Mpa)
c. 2 pcs aluminum gears inside keeps metering accuracy ≤0.5%
d. reset of one time unit
| Model Number |
CDI-M06 |
| Inlet Size |
BSP/NPT 1.5' |
| Flowrate |
0-250 lpm |
| Application Media | Diesel, Gasoline, Kerosene |
| Material |
Aluminum |
| Accuracy | ±0.5% |
| Max. Working Pressure | 1.8 Mpa |
| Measuring Unit | Litre |
| Package |
6 pcs/carton |
| N.W./G.W. |
18 kgs/20 kgs |
| Dimension | 57x47x19 cm |
