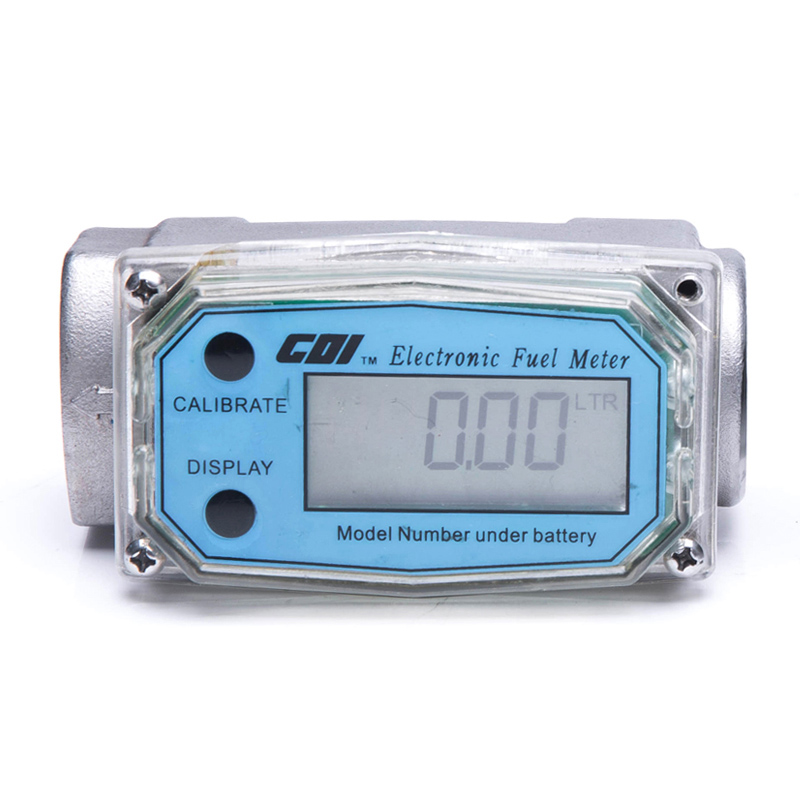

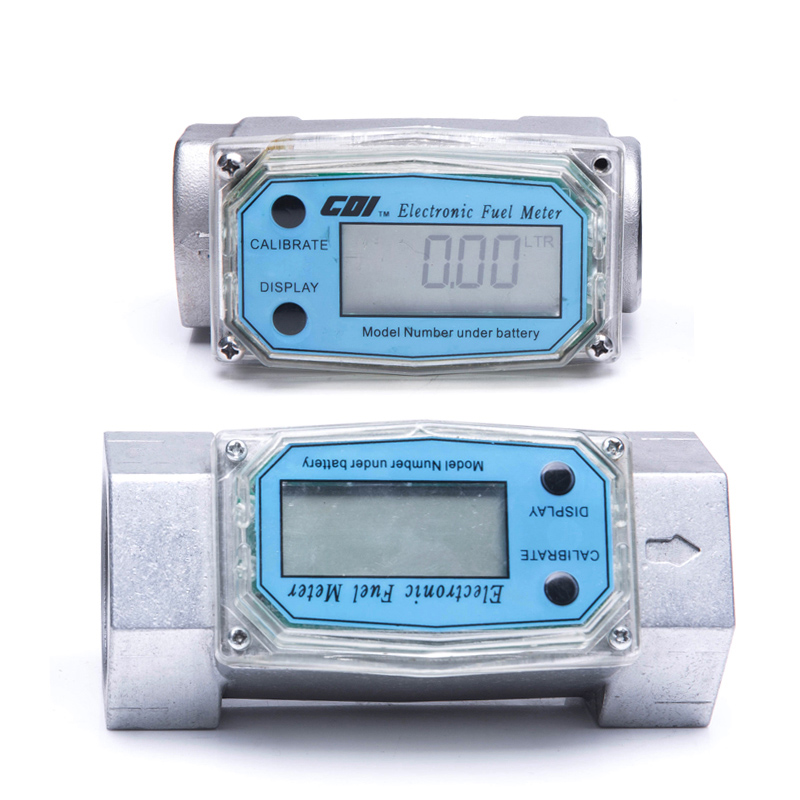

With high accuracy, durable life, small volume, Turbine Flow Meter Series are mainly used to transfer light oil such as diesel, gasoline. Its module design can be used with output module, sensor and long-distance transfers. Other Material like Plastic or Stainless Steel are also available.
a. 2 Buttons on Panel(DISPLAY for resetting, CALIBRATE for accumulating)
b. Optional unit conversion of Gallon, Liter, PT, and QT

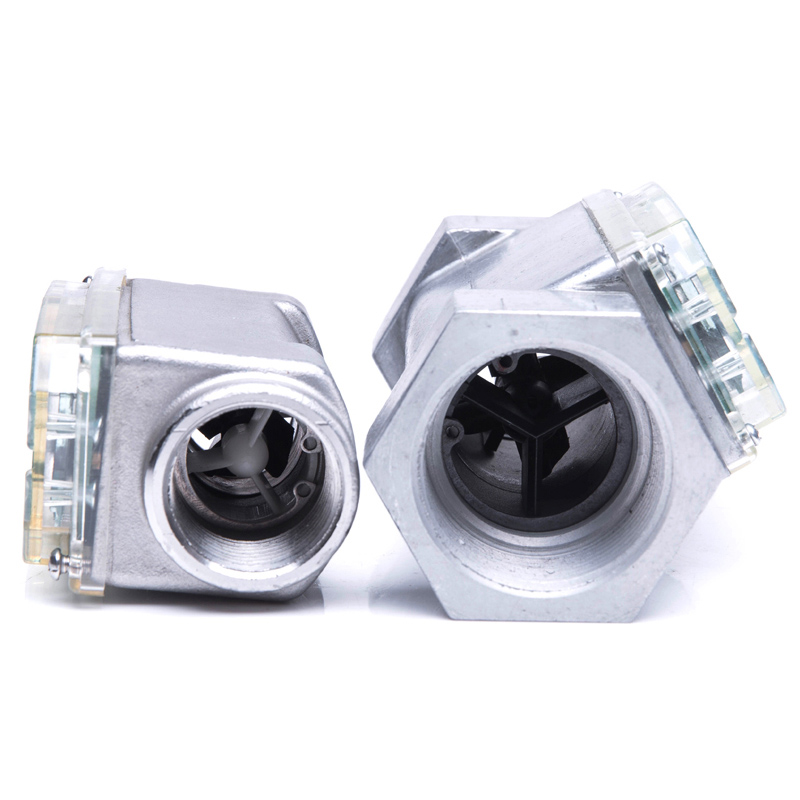

c. Sensitive PPS rotor makes accuracy ≤0.5%
d. Lithium battery can supply 9000 hours power
| Model Number |
CDI-M03 |
| Inlet Size |
BSP/NPT 1' |
| Flowrate |
0-120 lpm |
| Application Media | Diesel, Gasoline, Kerosene, Chemicals |
| Material |
SS/PP/Aluminum |
| Accuracy | ±0.5% |
| Max. Working Pressure | 145Psi (10 Bar) |
| Measuring Unit | Litre, Gallon, PT and QT |
| Power | 2x1.5v AAA Batteries |
| Unit Count | 4 digits |
| Total Count | 6 digits Accumulationx100 9,999,990 |
| Package |
20 pcs/carton |
| N.W./G.W. |
7kgs/9kgs |
| Dimension | 49*38*20 cm |
