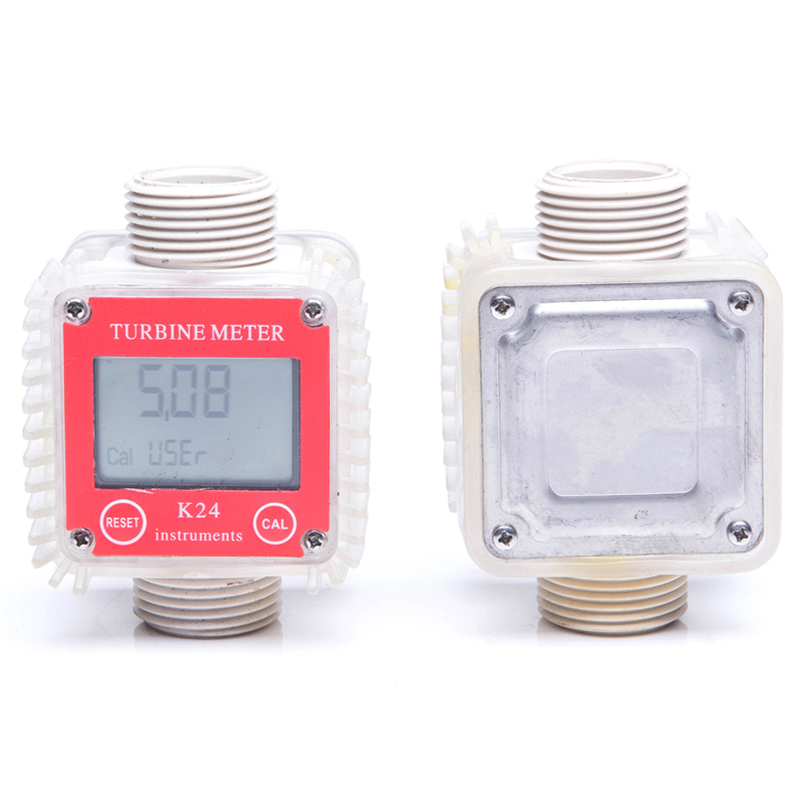

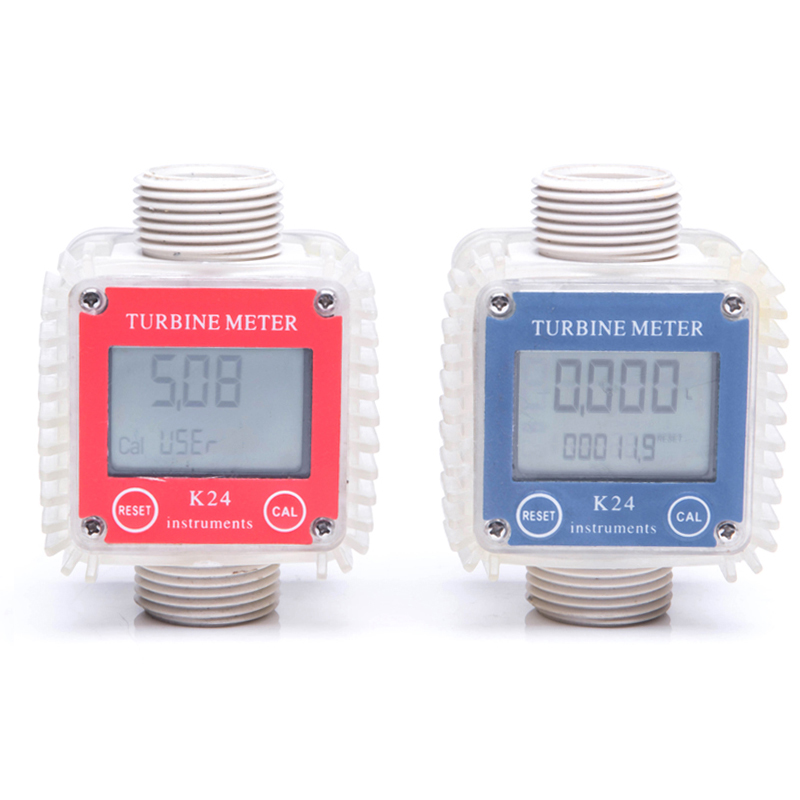

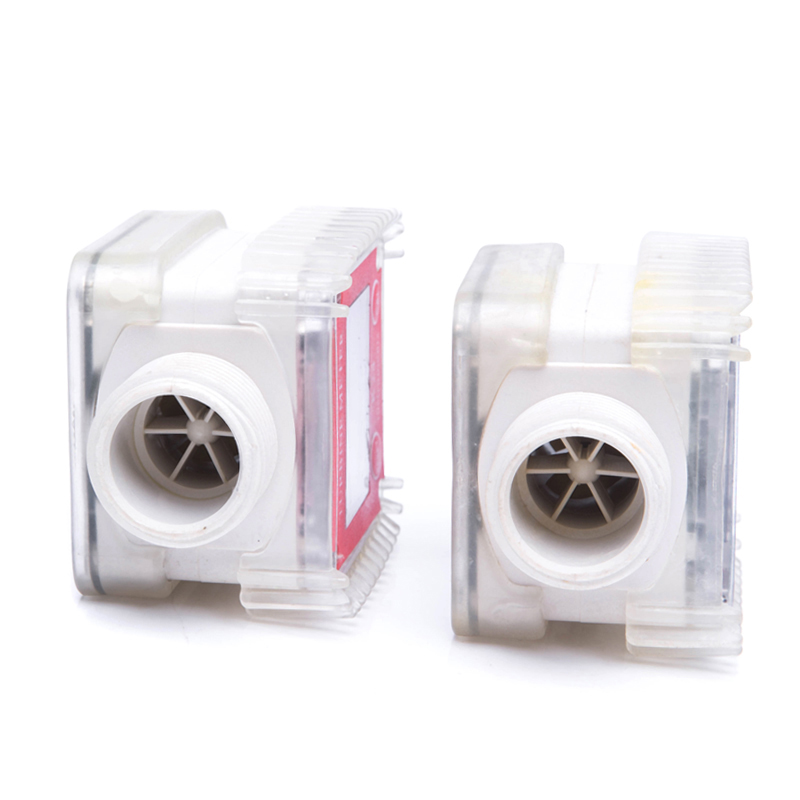

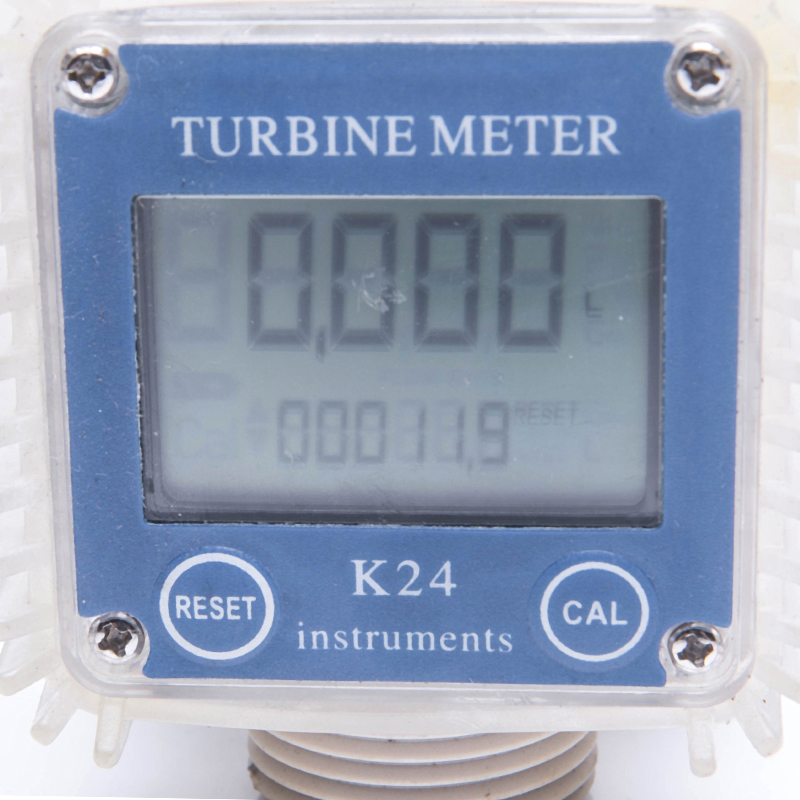

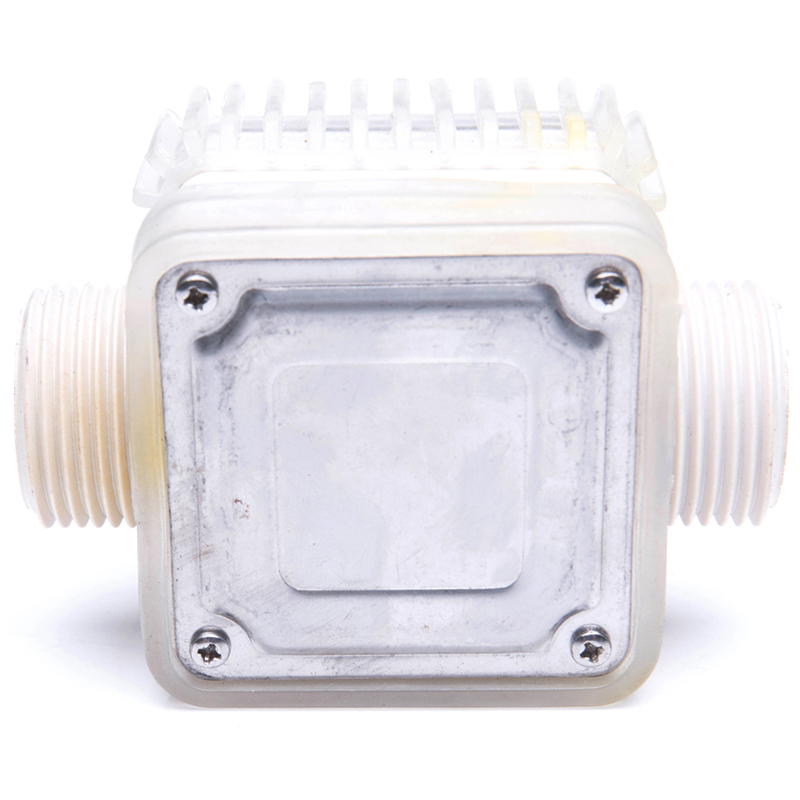

K24 Turbine Type Flowmeter are mainly used to transfer light oil such as diesel, gasoline. Its module design can be used with output module, sensor and long-distance transfers. Material SS, PPS or PA are optional.
a. High accuracy, durable, compact
b. Optional unit conversion of Gallon, Liter, PT, and QT
c. Sensitive PPS rotor makes accuracy ≤1%
d. Two cumulants(1 resetting, 1 accumulating)
e. Lithium battery can supply 9000 hours power
f. Flowrate display on the panel when transfer
| Model Number |
CDI-M01 |
| Inlet Size |
BSP/NPT 1' |
| Flowrate |
0-120 lpm |
| Application Media | Diesel, Gasoline, Kerosene, Chemicals |
| Material |
SS/PP |
| Accuracy | ±0.5% |
| Max. Working Pressure | 145Psi (10 Bar) |
| Measuring Unit | Litre, Gallon, PT and QT |
| Power | 2x1.5v AAA Batteries |
| Unit Count | 4 digits |
| Total Count | 6 digits Accumulationx100 9,999,990 |
| Package |
40 pcs/carton |
| N.W./G.W. |
12kgs/17kgs |
| Dimension | 48*33*31 cm |
