Big Flowrate Fuel Pump Assy

CDI-PA17 80LPM Gear Pump with Gear Flowmeter Assembly

Please call: +86 57721817288
  • CDI-PA17 80LPM Gear Pump with Gear Flowmeter Assembly
Desription
  • Introduction

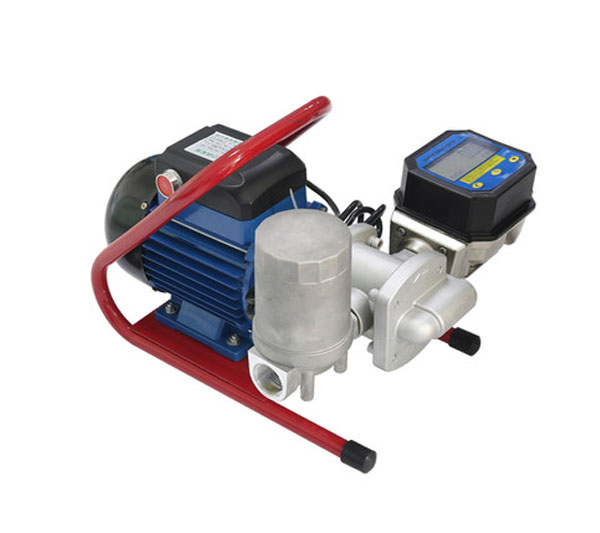

DYB-80-AC ogm diesel pump assy . It is generally combined with 4M rubber delivery hose;2M plastic suction hose;11A auto nozzle; ogm flowmeter;DYB-80-AC gear pump;Filter; Bracket. Easy installation, can quickly connected to fuel or oil drum, low operating cost, small size, the pump can select high precision oval gear flowmeter and motors. After all, it is quite a practical choice for diesel/kerosene transfering.



a.  cast irom pump body finished with anti-corrosion pain

b.  easy carrying and wide application in various excvavtors, land levellers, pavers, road rollers, etc.

c.  flexible option for the pumps and meters, as well as the bracket

d.  for diesel/kerosene transfer


Model Number   PA-DYB-80-AC OGM Pump Assy
  Inlet&Outlet Size   1'
  Flowrate   5-80 lpm
  Power
  220v
  Application Media   kerosene, diesel
  Temperature
  -25℃-+55℃
  Accuray
  ±0.5%
  Sution/Lead
  5M/20M
  Dimension   40x35x31 cm
  Package   1 pc/carton
