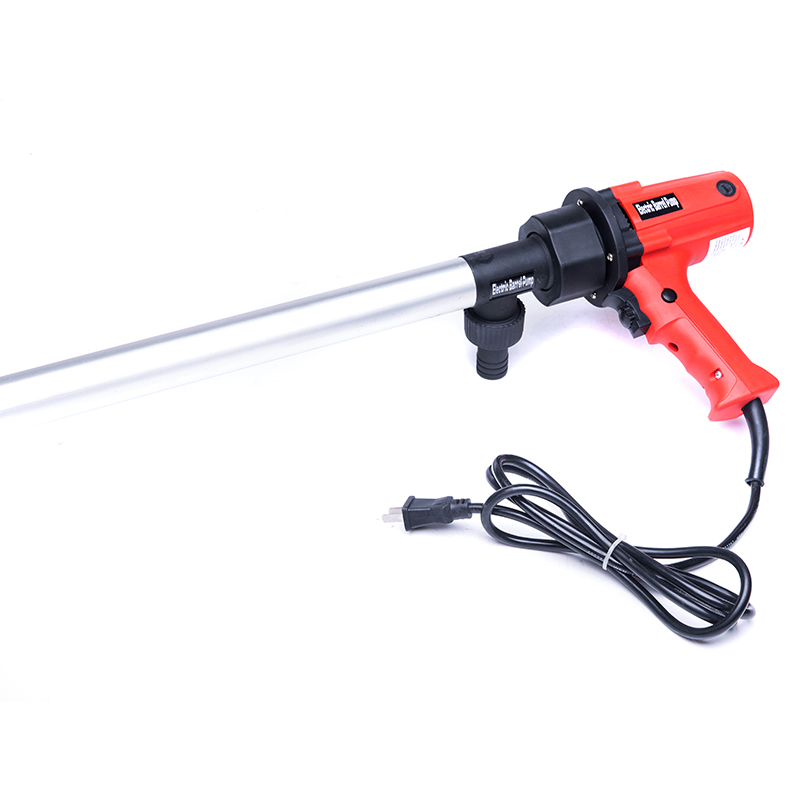

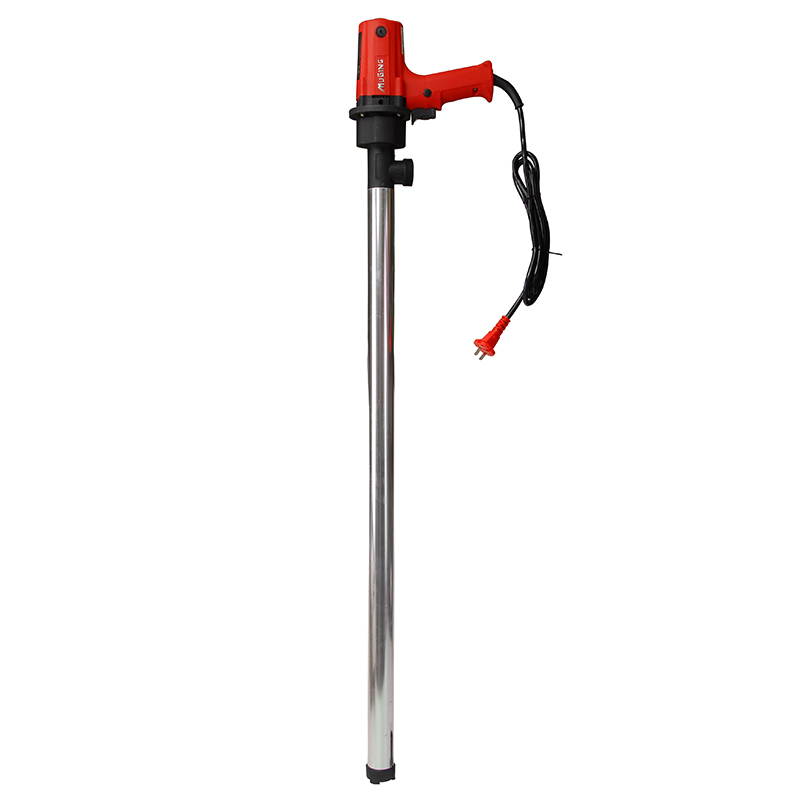

DYB barrel pump is used to transfer oil from drums and chooses high quality copper wire, which is more durable and reliable. It is suitable for diesel, kerosene, gasoline, engine oil, chemicals, as well as fluids with low-corrosion, low density, and few impurities. We offer 220V/12v/24v with high quality and handy shape.Also material of aluminum and stainless steel is optional.(pls choose all ss material type if for drinks or low corrosion water)
a. Self Priming with 5 meter lead, makes energy saving
b. 1.5 meters cable length
c. Suitable for 200L to 220L barrels
d. Head Material usually plastic(POM), SS 304 for option
e. Compact size and light weight, easy for carry
| Model Number | CDI-P22 | |||
| Model |
Barrel-A-DC |
Barrel-A-AC |
Barrel-B-AC |
Barrel-C-AC |
|
Inlet&Outlet |
44mm and 25mm |
|||
| Flowrate |
100 lpm |
30-100 lpm |
30-100 lpm |
50-250 lpm |
| Media |
kerosene, diesel, gasoline(option for ss motor) |
|||
|
Voltage |
DC 12V/24V |
220V/50Hz |
||
| Power |
380W |
720W |
800W |
1600W |
|
Speed Range |
1000 rpm |
300-15000rpm |
300-10000rpm |
300-18000rpm |
|
Head |
6 m |
3-7 m |
7 m | 9 m |
|
Max. Viscosity |
200 cps |
300 cps |
500 cps | 800 cps |
| Package |
5 pcs/carton |
|||
| Carton Dimension |
114x29x20 cm |
|||
| G.W/N.W |
17 kgs/14 kgs |
|||
