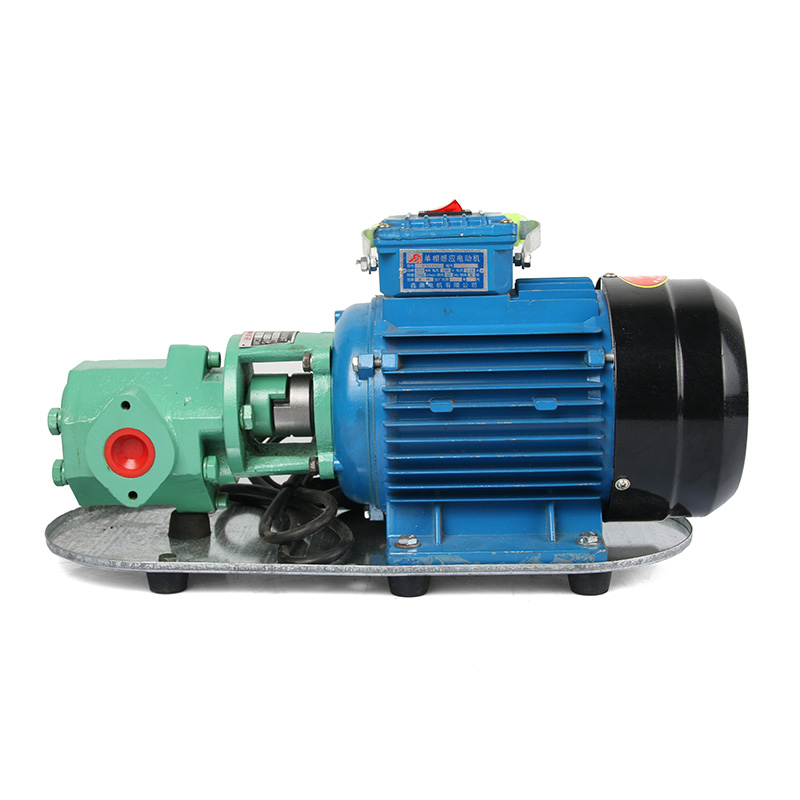

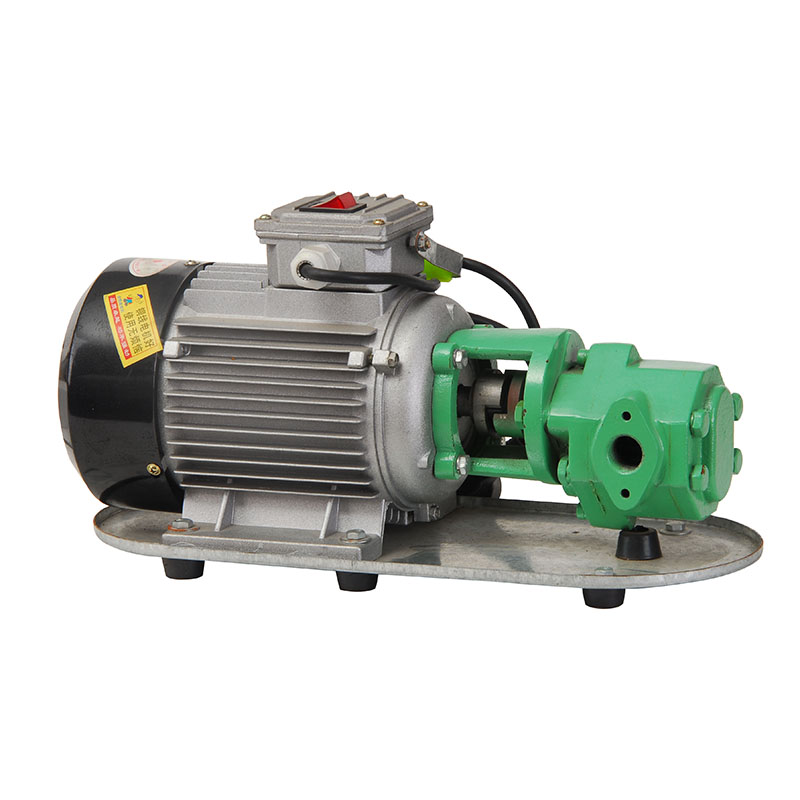

P-WCB Series pump is mainly used to transfer hot oil in food machinery and can work continuously. Material of cast iron and stainless steel are optional for different fluid, such as clean diesel, kerosene, engine lubrication oil, as well as gaoline, benzene when with bronze impellers and ex-proof motor.
a. Medium temperature could up to 150℃
b. Easy carry and wide application in oil drum carrier, oil refinery, electric power plant, substation and oil depot
c. Continuously working
d. Cast aluminum motor with protection grade IP44(Cast Iron), IP 54(SS)
e. with protective valve, prevents from fuel wasting as well as polluting
| Model Number | CDI-P21 | |||
| Model |
P-WCB-30 |
P-WCB-50 |
P-WCB-75 |
P-WCB-100 |
| Inlet&Outlet Size |
20mm |
20mm |
25mm |
25mm |
| Flowrate |
0-30 lpm |
0-50 lpm |
0-75 lpm |
0-100 lpm |
| Application Media |
gasoline,kerosene, diesel,lubrication oil, corrosive liquid |
|||
|
Voltage |
220V/50Hz, 380V for option |
|||
| Power | 370W/550W/750W | |||
| Motor Speed | 2800 rpm | |||
|
Fluid Temperature |
150℃ |
|||
|
Material |
Cast Iron, Stainless Steel for option |
|||
| Suction&Lead |
5 m& 30 m |
|||
