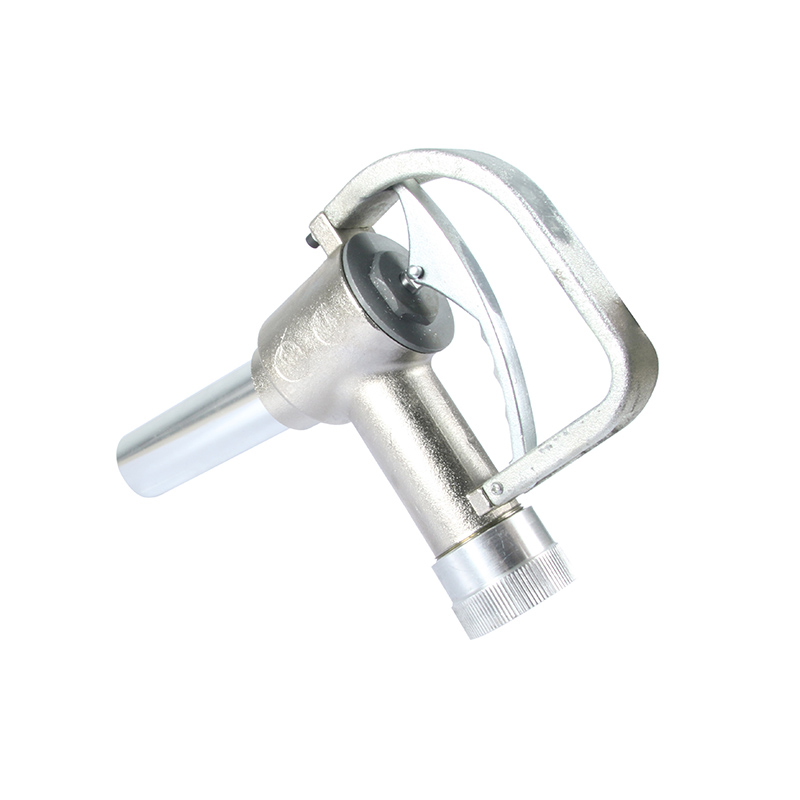

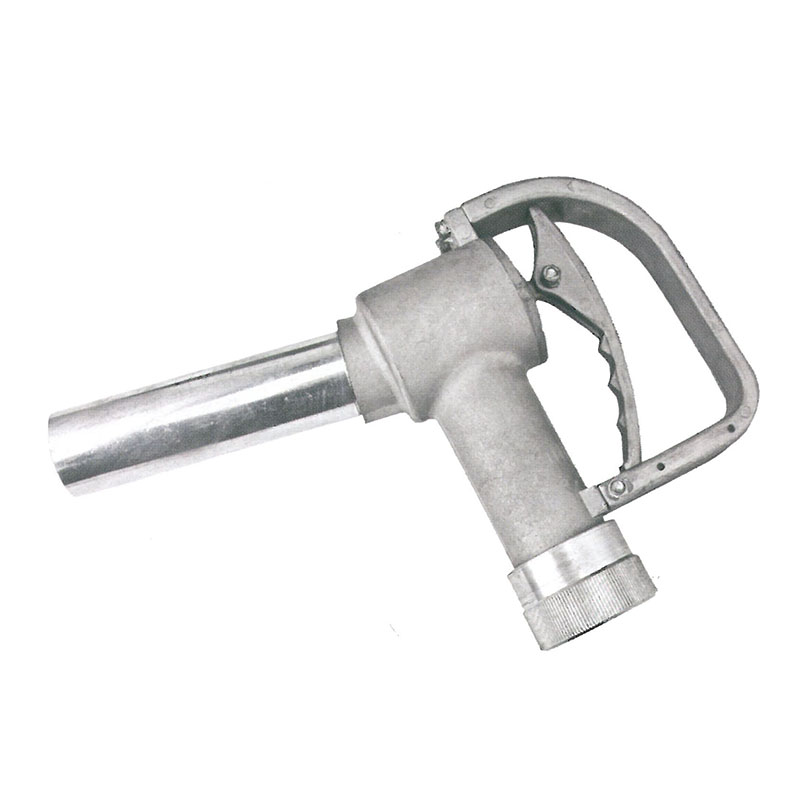

1290 series auto nozzle is used to measure the volume flowrate of liquid passing through the pipe. This nozzle can be assembled with different pumps and flowmeters, and is widely applied for refueling of engines, cars, motorbikes, tractors, etc.
a. can be used for different media like gasoline, diesel, kerosene and other oil
b. with high flowrate up to 290 lpm
c. two levels to control the flowrate
| Model Number |
CDI-N23 |
| Inlet Size |
BSP/NPT 1.5' 2' |
| Flowrate |
0-290 lpm |
| Application Media |
gasoline, kerosene, diesel |
| Working Pressure |
0.18Mpa |
| Material |
Aluminum |
| Package |
10 pcs/carton |
| N.W./G.W. | 24kgs/25kgs |
| Dimension | 35x35x52 cm |
