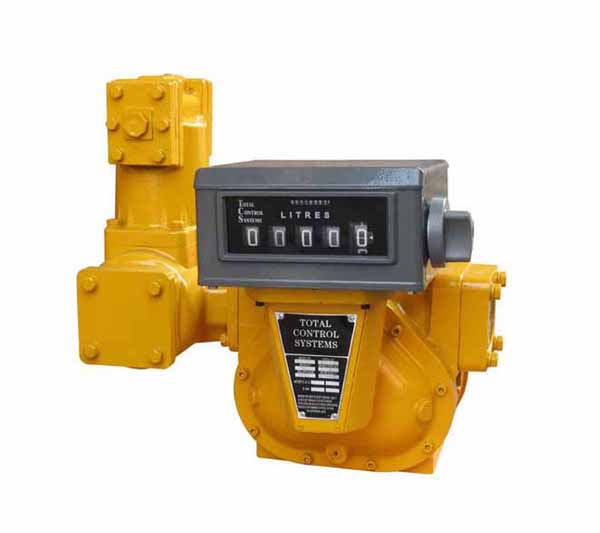

TCS Series Volumetric Flowmeter is one pipeline way flowmeter, suitable for big flowrate in industries. Material like aluminum, cast iron and stainless steel of construction is optional. Measuring unit of Liter/gallon could be chosen by clients.
a. Excellent stepless fine-tuning device allows plus-minus calibration of flowmeter
b. High accuracy and repeatability within the large range of flow;superior accuracy of constant flow
c. Low maintenance, low wear, long working life
d. Low pressure loss, genuine gravity flowmeter
e. Accuracy regardless of pressure fluctuations,temperature variation, viscosity
f. Aluminum, cast iron and stainless steel materials of construction for choice
| Model No. | CDI-M22 | ||||||||
| Model | TCS-40 | TCS-50 | TCS-50H | TCS-80 | TCS-80H | TCS-100 | TCS-100H | TCS-150 | TCS-150H |
| Inlet Size | 1.5' | 2' | 2' | 3' | 3' | 4' | 4' |
6' or 4' for option |
|
| Flowrate | 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
| Material | Aluminum/Cast Iron/Stainless Steel | ||||||||
| Vol/Revolutior | 0.30 L | 0.681 L0.681 L | 1.839 L1.839 L | 5.102 L5.102 L | 9.507 L9.507 L | ||||
|
Medium |
Diesel, Oil with high viscosity | ||||||||
| Max.Pressure | 10 Bar/150 Psi | 25 Bar/350 Psi | |||||||
|
Accuracy |
±0.2% | ||||||||
| Repeatability | ≤0.5% | ||||||||
| Viscosity | 30SSU-1,500,000SSU | ||||||||
|
Unit Count |
5 digits | ||||||||
|
Total Count |
8 digits | ||||||||
| Package | 1 pc/wooden box | ||||||||
