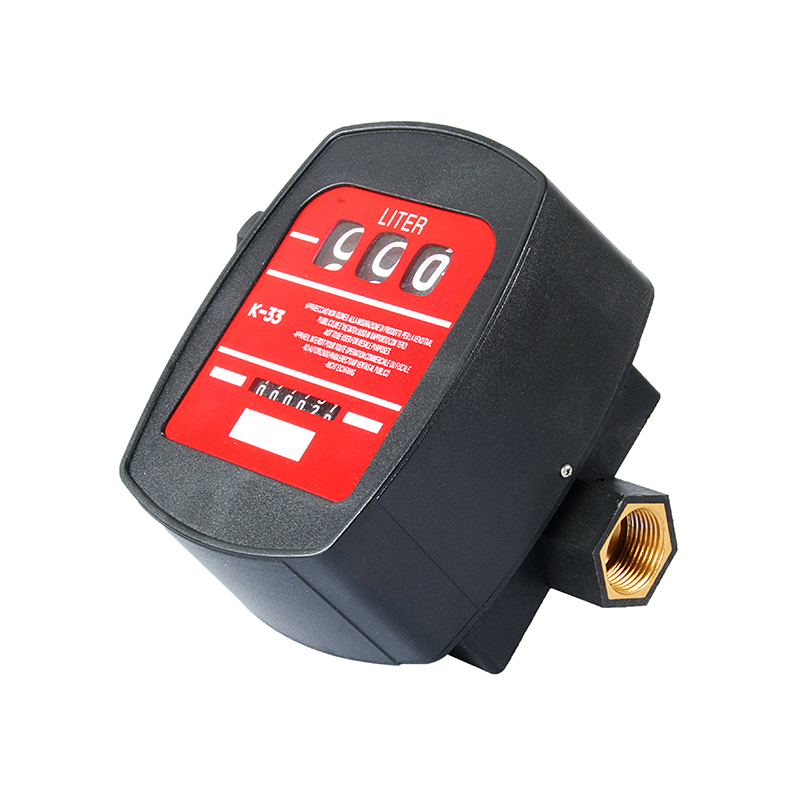

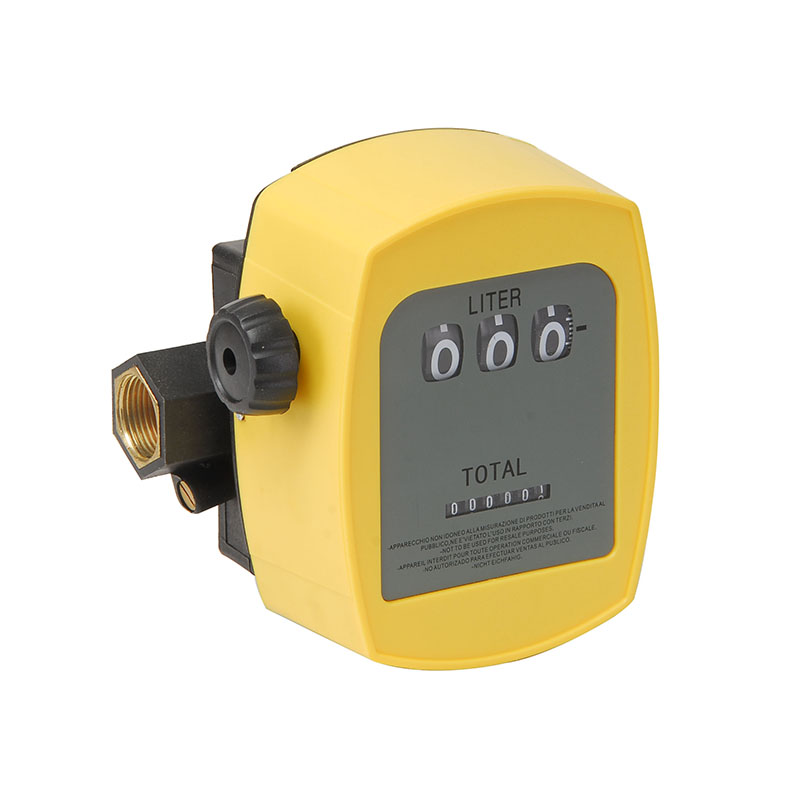

M-FM-3P flowmeter is to measure the exact quantity of the dispensed fuel. They are designed for noncommercial use only. These flow meters are reliable, easy to install and simple to calibrate on the workplace. Aluminum metering chamber, 1' thread connection, mechanical readout device with rotating wheels. 4-digital subtotals can be set to zero, while 8 digitals total readouts can not.
a. can connect with pumps for metering transfer
b. option for the unit on Liter and Gallon
c. no electricity need, usable on farm, mine and other place without electricity
d. 4 digits subtotals, 8 digits totals
| Model Number |
CDI-M20 |
| Inlet Size |
BSP/NPT 1' |
| Flowrate |
0-100 lpm |
| Application Media | Diesel, Gasoline, Kerosene |
| Material |
Plastic |
| Accuracy | ±1% |
| Max. Working Pressure |
3 Mpa |
| Unit Count | 3 digits |
| Total Count |
6 digits |
| Package | 10 pcs/carton |
| N.W./G.W. | 15 kgs/16 kgs |
| Dimension | 64x25x31 cm |
