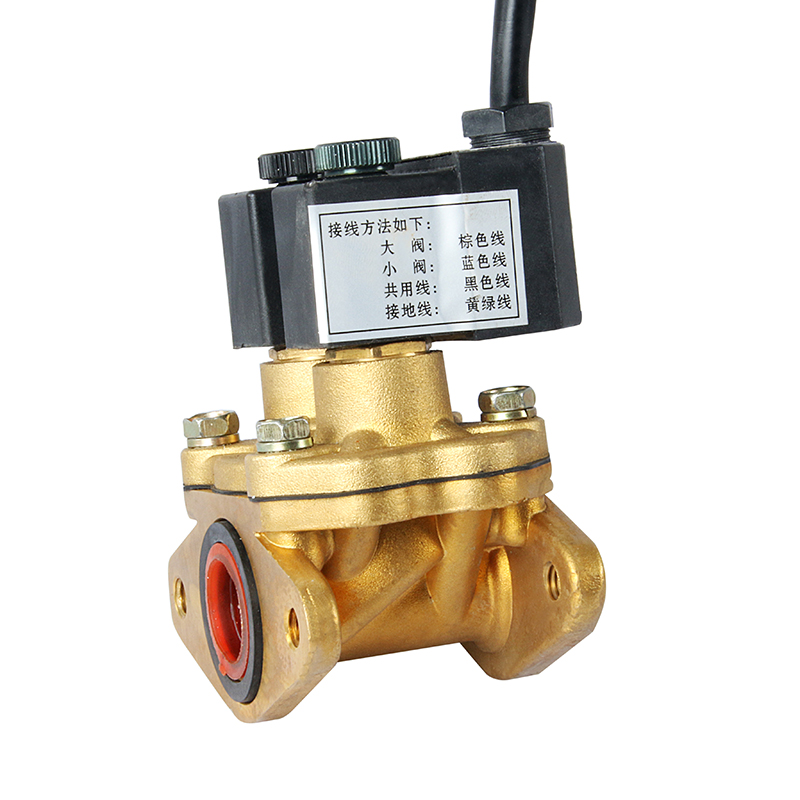

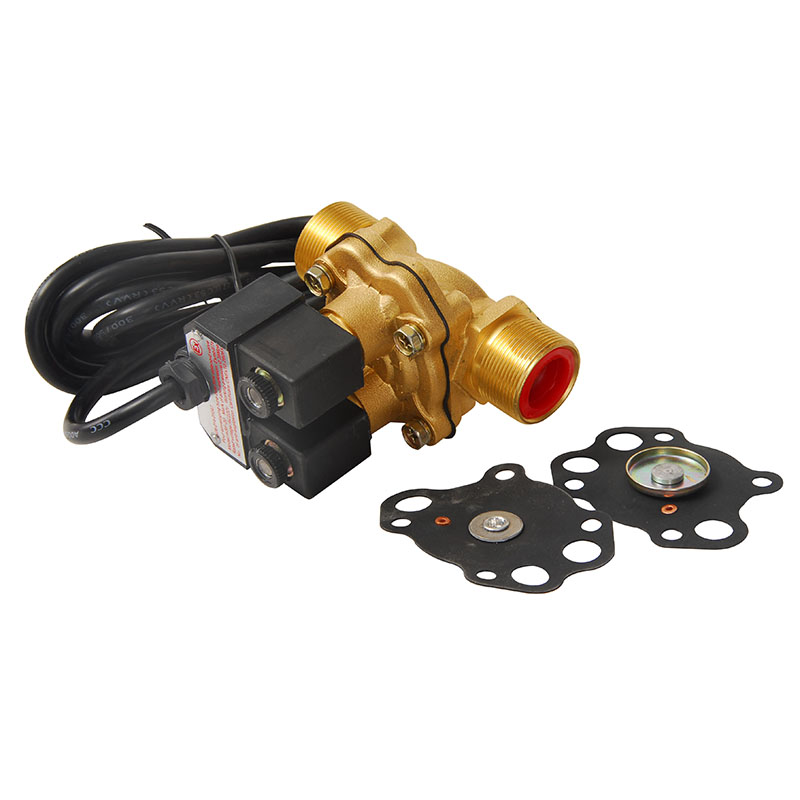

CDI-DA18 Copper Fuel Dispenser Solenoid Valve

Please call: +86 57721817288

Desription

Introduction

The electric solenoid valve is generally installed in the fuel dispenser to control the refueling.

Features

a. controlled by built-in overlapped or parallel-connected electromagnetic precursor valve, with advanced craft and reliable action;
b. diaphragm of main valve adopts imported special rubber, with high anti-corrosion and resisting low temperature at -40°C;
c. special stainless steel magnetic material never rust or generate remanent magnetism;
d. close the main valve when the working pressure is 0.3-0.4MPa, and the small flow system will be 3-3.5L/min, which can be designed according to users' requirements.

Model Number	CDI-DA18
Inlet Size	3/4' 1'
Material	Brass
Flow Range	3-50/80 lpm
Working Pressure	0.035MPa--0.35MPa
Application Media	gasoline, kerosene, diesel
Package	18 pcs /carton
N.W./G.W.	22.5 kgs/25 kgs (3/4')
Dimension	44x36x25 cm
