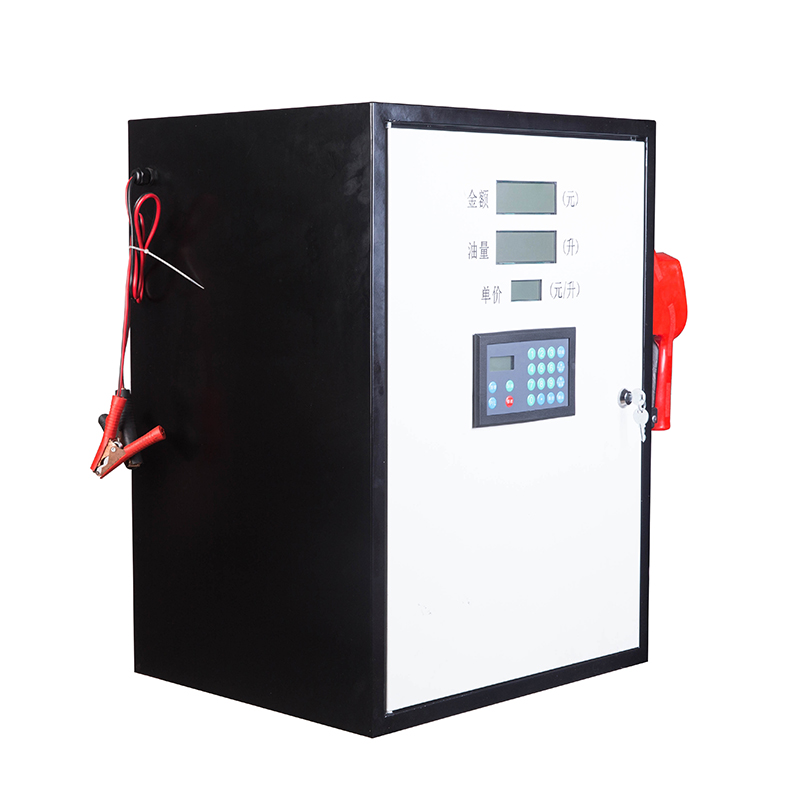

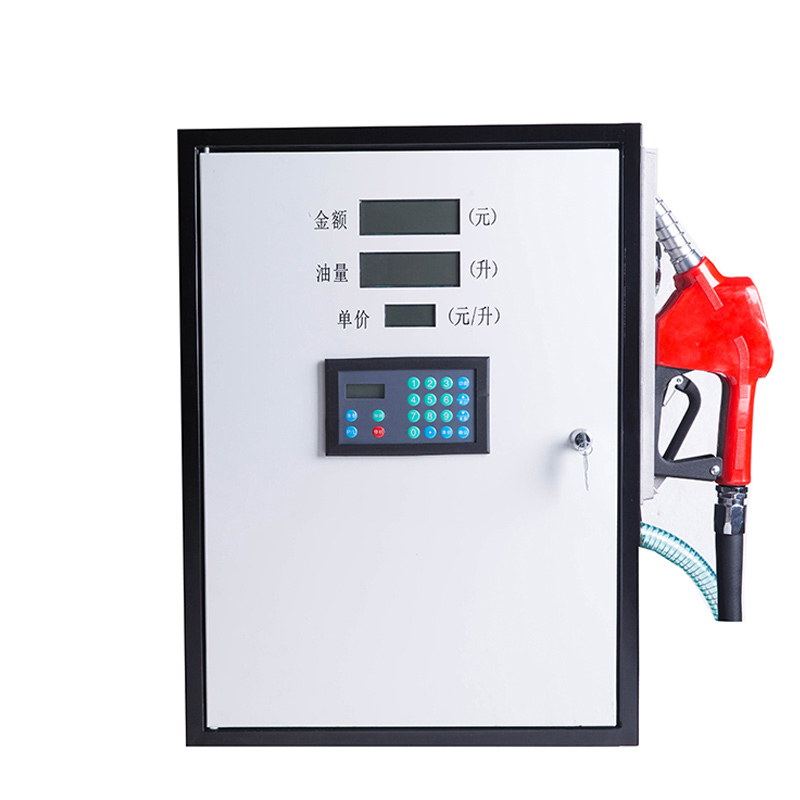

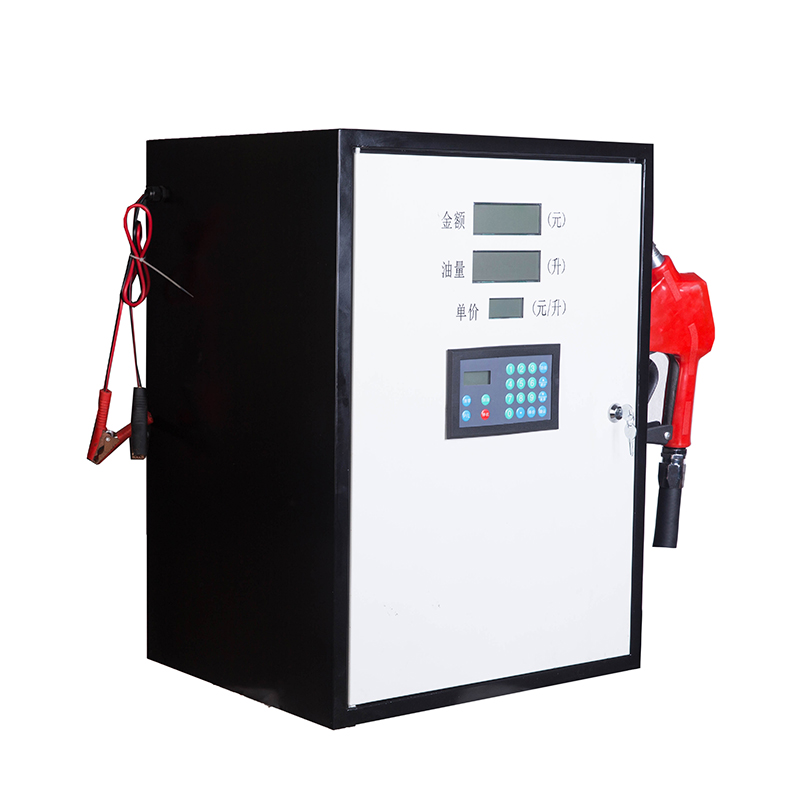

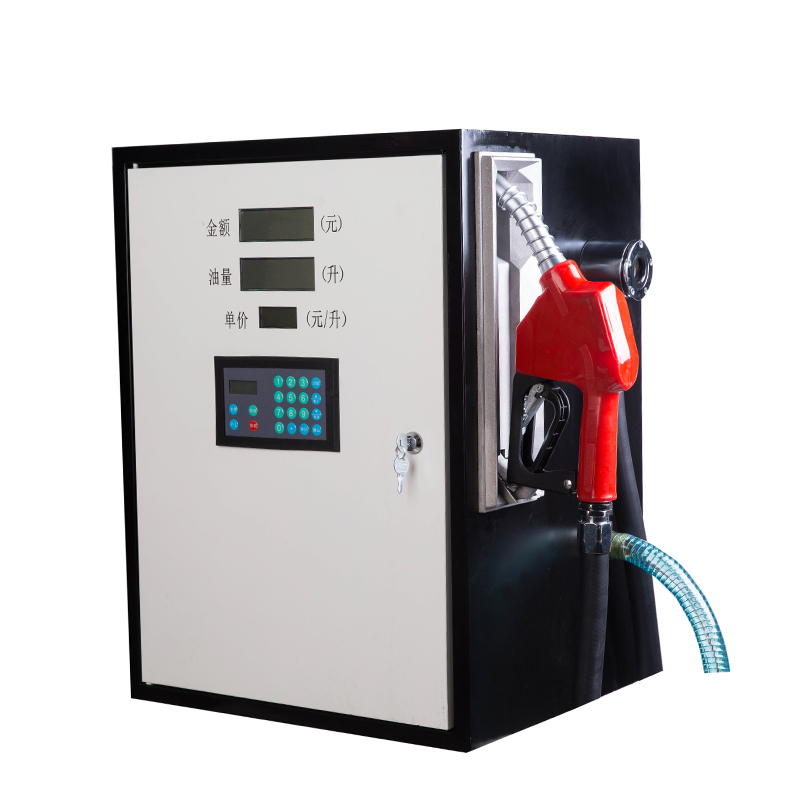

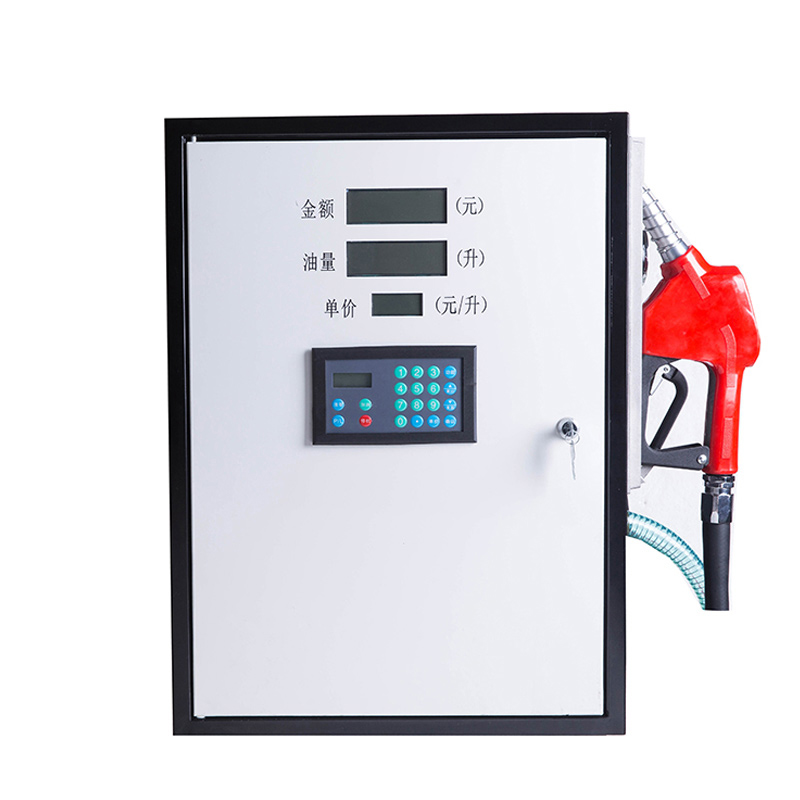

JYB-65 diesel pump fuel dispenser . It is generally combined with Keyboard, Display,Control board, RSJ flowmeter and 220v/12v/24v pump, 6M delivery rubber hose, 3M inlet plastic hose, filter, solenoid valve(option), printer(option), flexible pipe(option), automatic shutoff nozzle with 360 degree nozzle swivel, as well as nozzle holder and oil watcher. You can preset the total volume or price, and start refueling, the pump
dispenser would stop when it arrives at the number set. After all, it
is quite a practical choice for diesel/kerosene transfering.
a. preset price/volume fucntion
b. easy carrying and wide application in various excvavtors, land levellers, pavers, road rollers, etc.
c. flexible option for the pumps and meters, as well as the computer controller board
d. for diesel/kerosene transfer
e. printer, english or customized character/logo available
| Model Number | D-JYB-65 |
| Inlet&Outlet Size |
1' |
| Flowrate |
5-60/80 lpm |
|
Power |
220v/12v/24v |
| Application Media |
kerosene, diesel |
|
Unit Price |
0~99.99 |
| Total Price |
0~9999.99 |
| Volume Range |
0~9999.99 |
|
Accumulative |
9 digits(volume), 11 digits(sum price) |
|
Temperature |
-25℃-+55℃ |
|
Accuray |
±0.3% |
|
Sution/Lead |
5M/20M |
| Package |
1 pc/carton |
